TCD 2015
Engine control
W 04-05-05
© 06/2006 8187-001
10/24
6

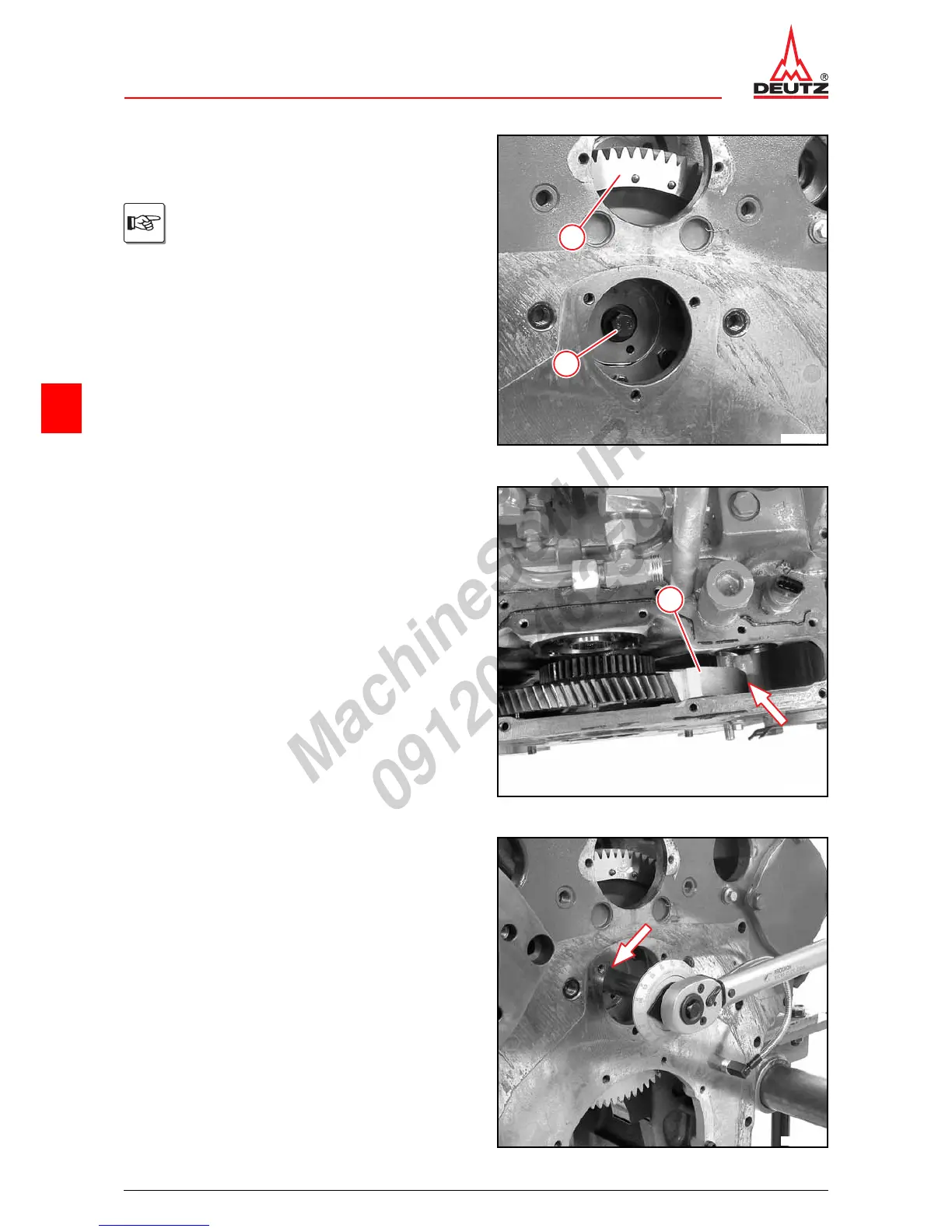

z Insert camshaft gear wheel (2).
z Lightly oil screw (1).
z Fasten screw (1).
Make sure that the parallel pin on the
camshaft gear wheel and the locating hole
on the camshaft are in line.
1
2
© 40429-0
z Insert counter support (1) in the toothing of the cam-
shaft gear wheel.
z Turn the camshaft gear wheel in the direction of
the B-bank.
z Block the camshaft gear wheel with the counter hold-
er on the crankcase (arrow).
1
© 40432-0
z Tighten screw (arrow).
A04 001
z Turn back the camshaft gear wheel.
z Remove counter holder.
© 40433-0
