Engine control
W 04-05-05
6

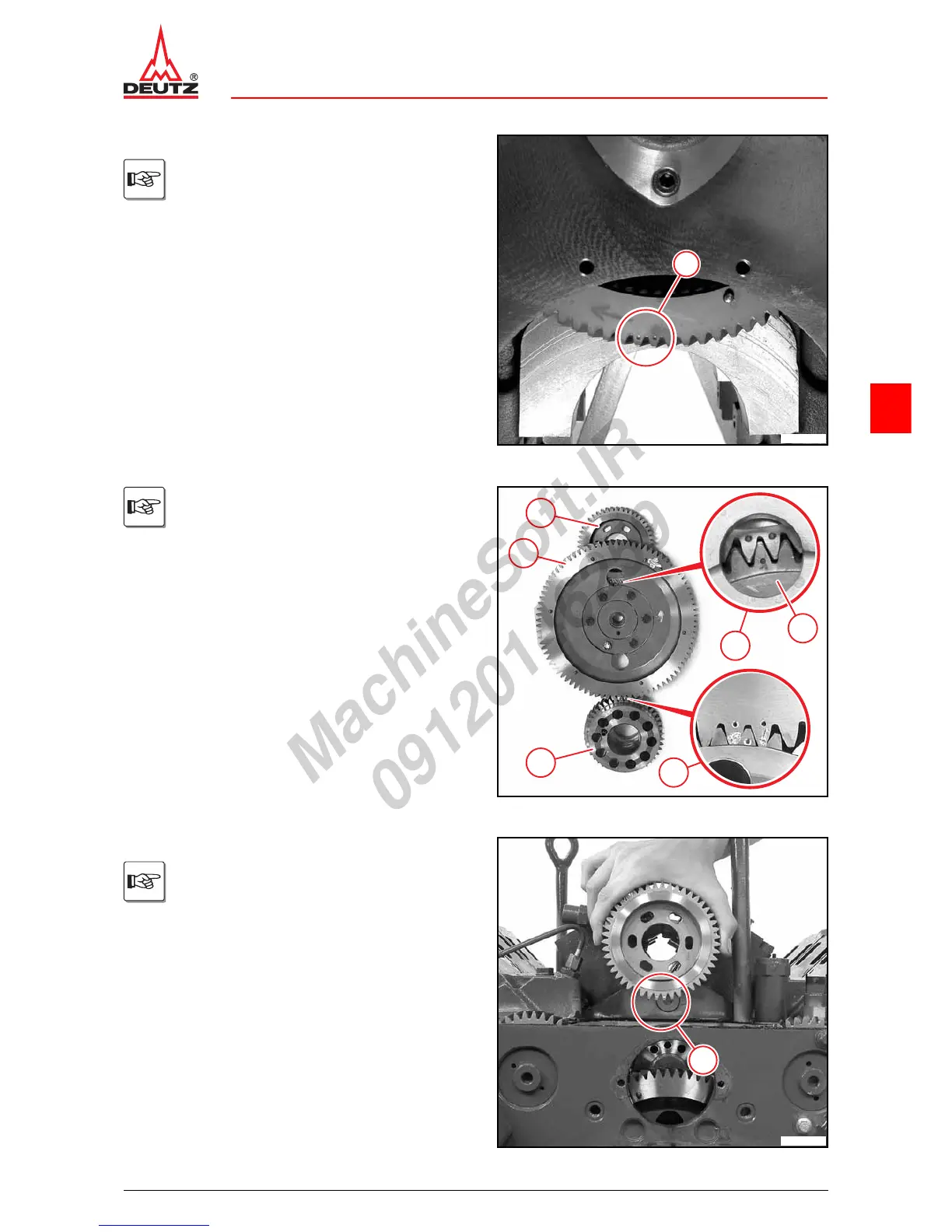

z Position camshaft gear wheel.
The marking (1) faces towards the cranks-
haft.
1
© 42289-1
Overview of the gear train and the mar-
kings of the control times:
Injection pump camshaft gear wheel (1)
Camshaft gear wheel (2)
Idler gear (3).
Crankshaft gear wheel (4)
Marking injection pump camshaft / idler
gear (5)
Marking camshaft / crankshaft (6)
4
5
6
3
1
2
© 40445-1
z Position injection pump camshaft gear wheel.
The marking (1) faces the camshaft gear
wheel.
1
© 40446-0
