TCD 2015
Engine control
W 04-05-07
© 06/2006 8189-001
10/32
6

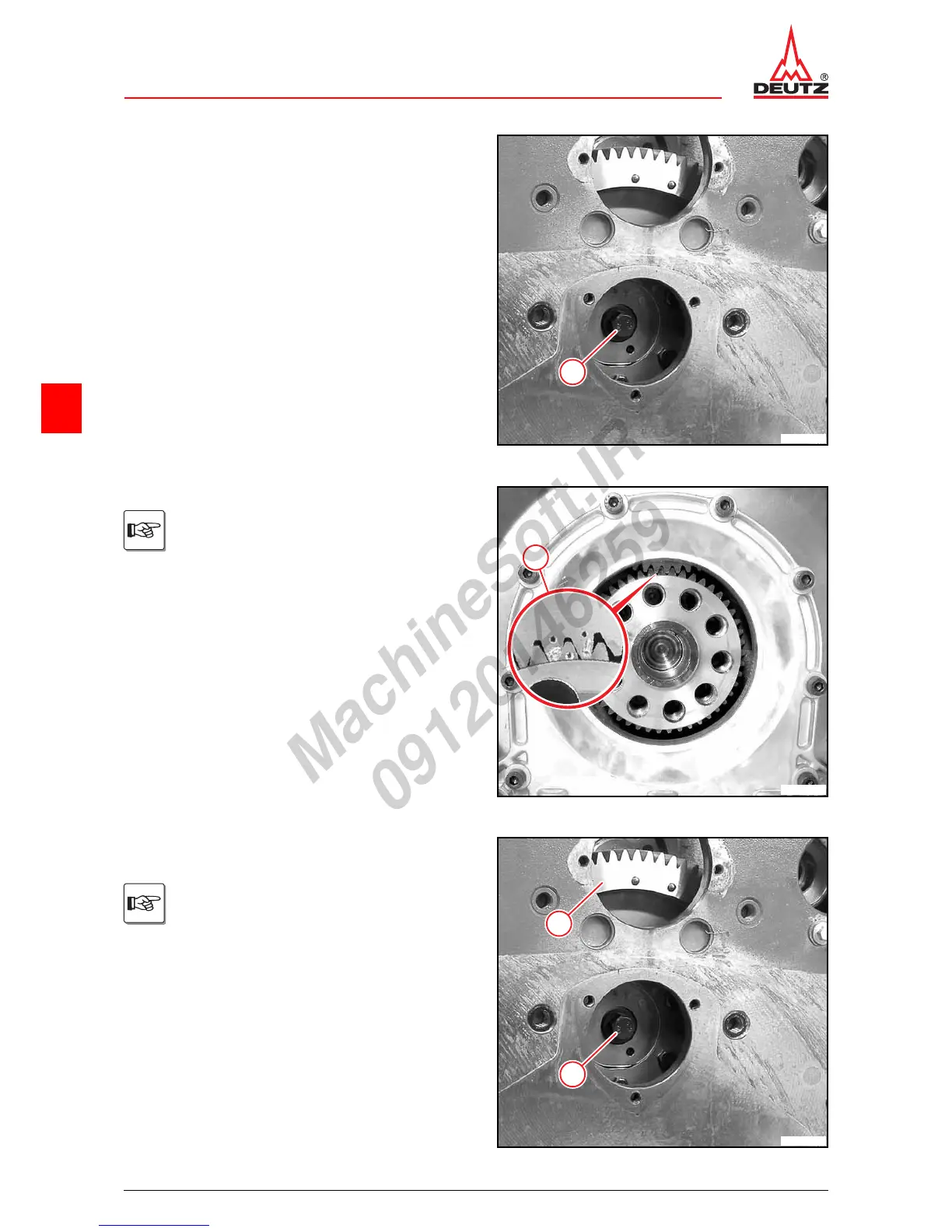

z Loosen screw (1).
1
© 40473-0
z Turn the crankshaft with the turning gear evenly.
z Remove counter holder.
The marking on the crankshaft gear wheel
must be between the markings on the
camshaft gear wheel (1).
1
© 40474-0
z Unscrew screw (1).
z Remove camshaft gear wheel (2)
Push back the camshaft carefully as far as
it goes.
1
2
© 45381-0
