TCD 2015
Engine control
W 04-05-07
© 06/2006 8189-001
22/32
6

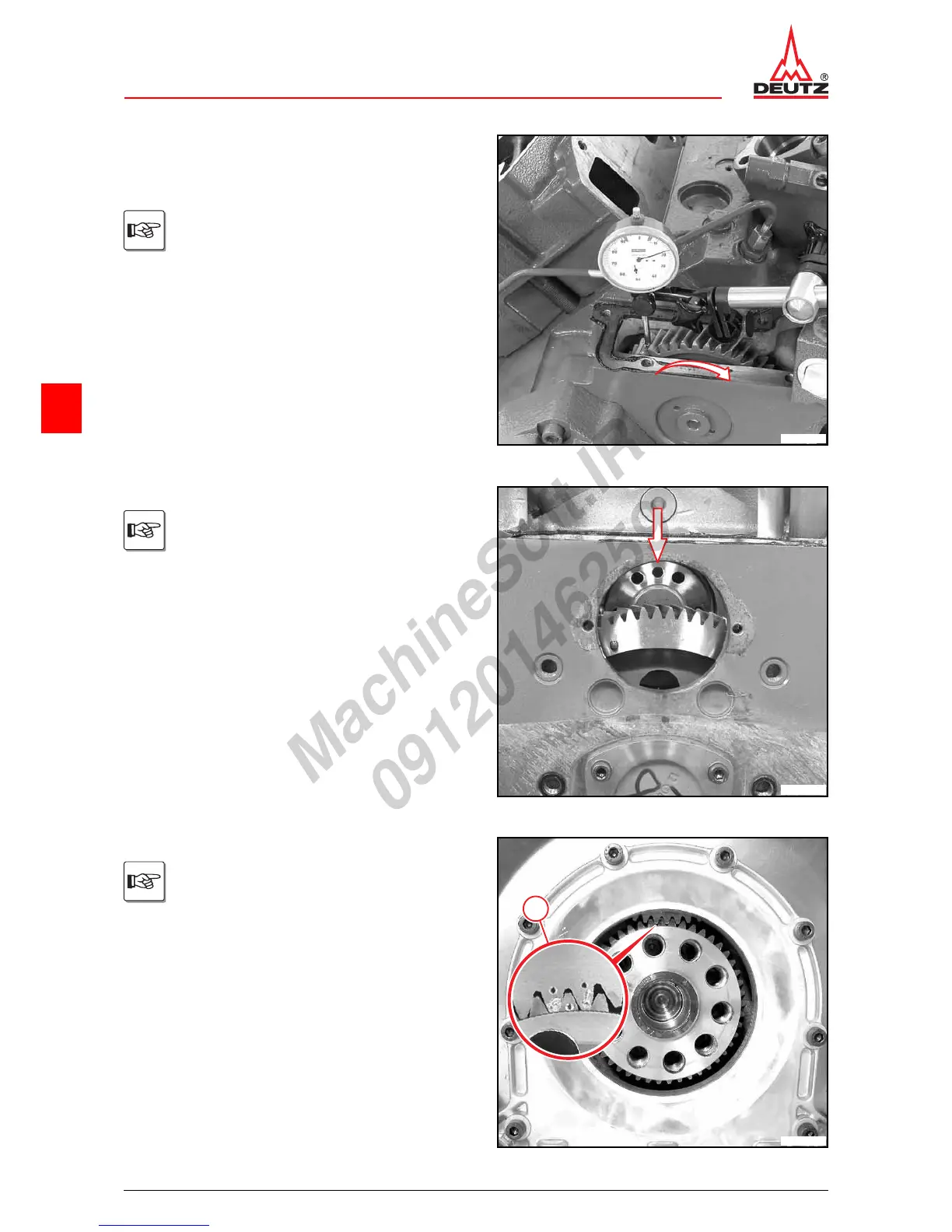

z Turn idler gear in direction of arrow until it stops.
z Read off measured value.
P04 44
z Remove magnetic measuring stand.
z Remove dial gauge.
Repeat the measuring process on several
tooth flanks.
© 40443-0
z Position the injection pump camshaft.
The locating hole (arrow) faces upwards.
© 40444-0
z Turn the crankshaft with the turning gear evenly.
The marking on the crankshaft gear wheel
must be between the markings on the
camshaft gear wheel (1).
1
© 40474-0
