TCD 2015
Exhaust system/Charging
W 06-01-05
6

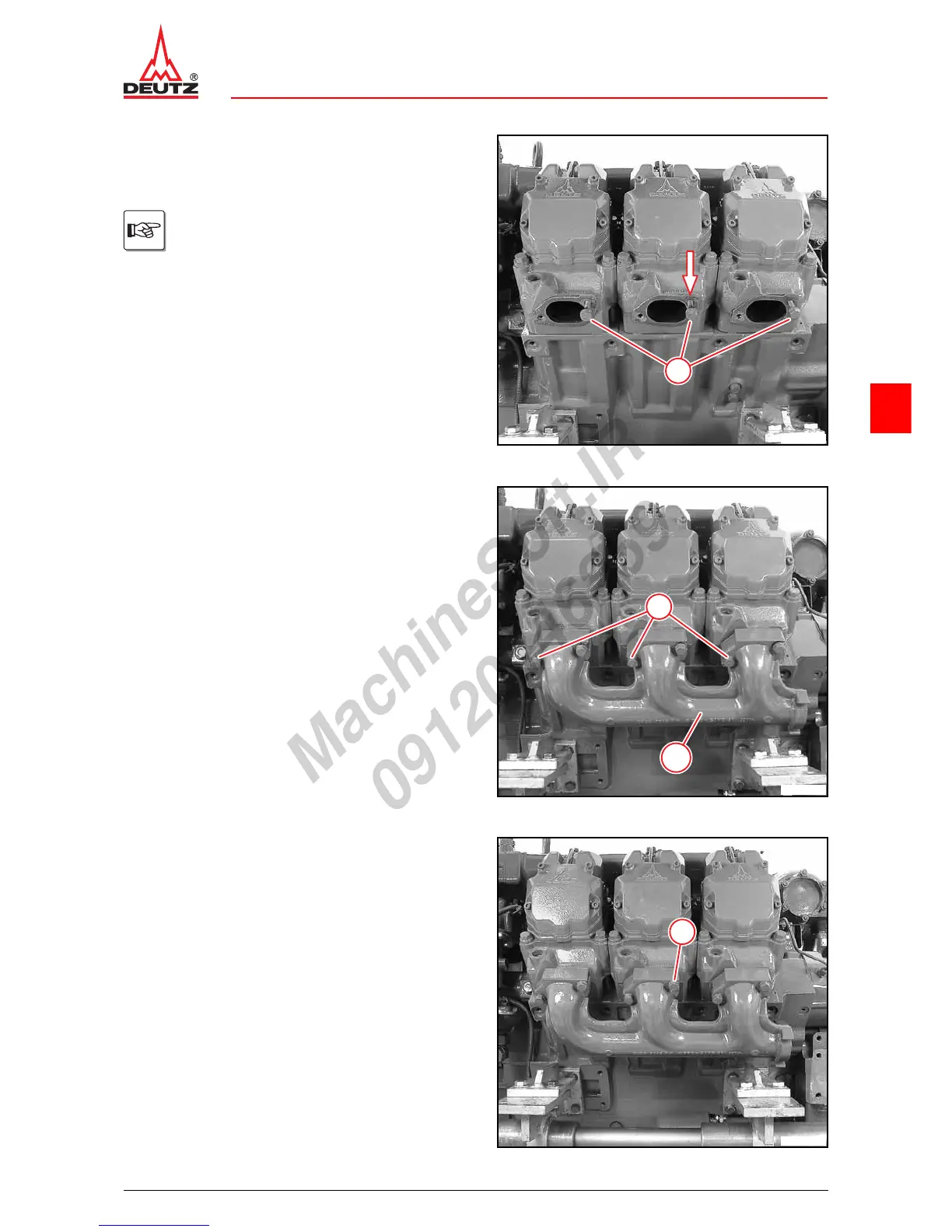

Installing exhaust line
z Clean sealing surfaces.
z Mount new gaskets.
z Coat the screws with fitting compound .
z Tighten screws (1).
Note installation position.
The strap (arrow) must face the cylinder
head cover.
1
© 45374-0
z Mount exhaust line (2).
z Coat the screws with fitting compound .
z Tighten screws (1).
2
1
© 45810-0
z Tighten all the screws (1) alternately from the centre
outwards.
A06 001
1
© 40986-0
