Deutz TCD 2015 - Page 384

TCD 2015 Railway
Exhaust system/Charging
W 06-01-07
© 06/2006 8198-001
2/2
6

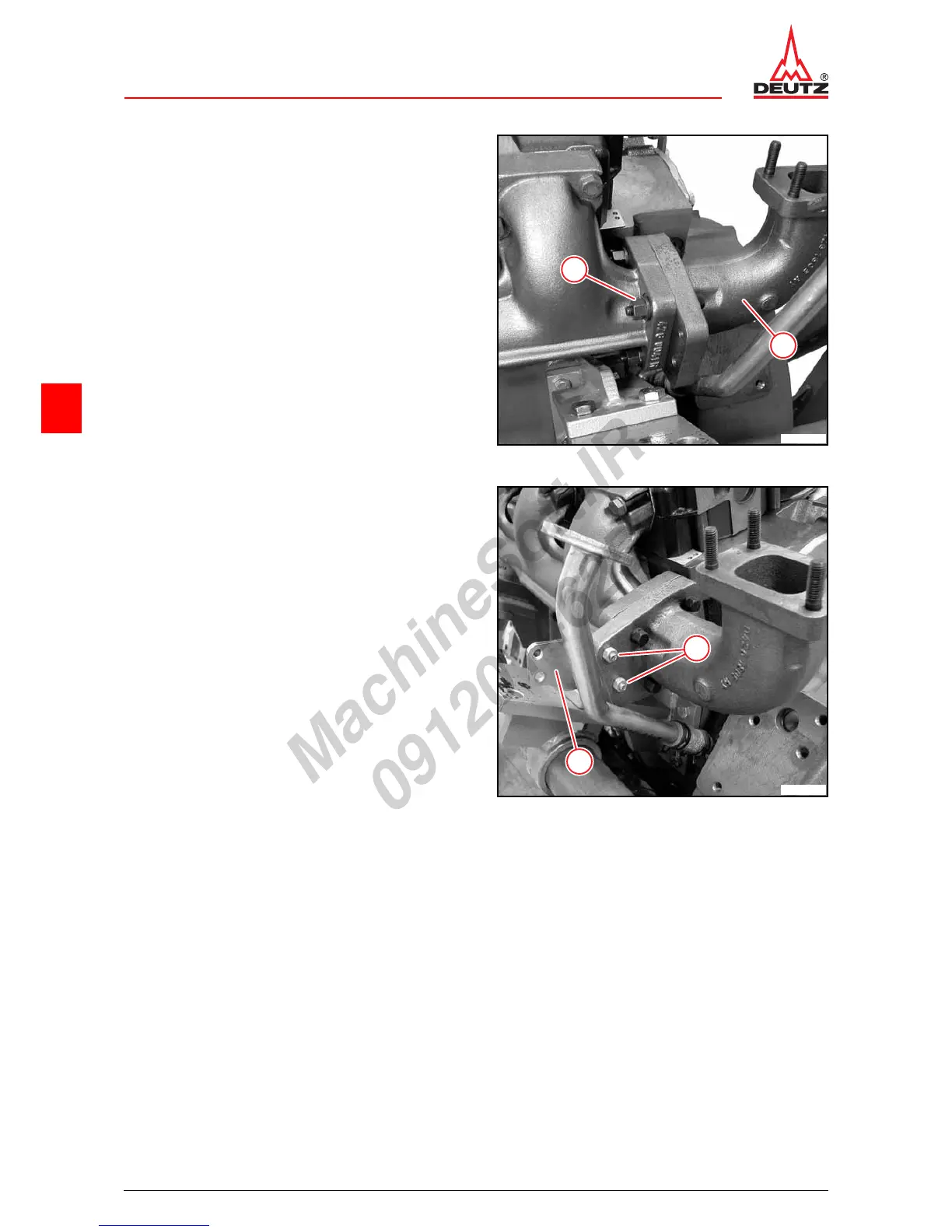

Installing exhaust manifold
z Clean sealing surfaces.
z Mount exhaust manifold (2).
z Coat the screws with fitting compound .
z Insert screws.
z Mount washers.
z Tighten nuts (1).
 A06 010
1
2
© 42081-2
z Mount holder (2).
z Insert screws.
z Tighten nuts (1).
 A06 034
z Install turbocharger (A-bank).
 W 06-06-04
1
2
© 42079-1
