Deutz TCD 2015 - Page 397

© 06/2006 8201-001
7/10
TCD 2015
Exhaust system/Charging
W 06-02-05
6

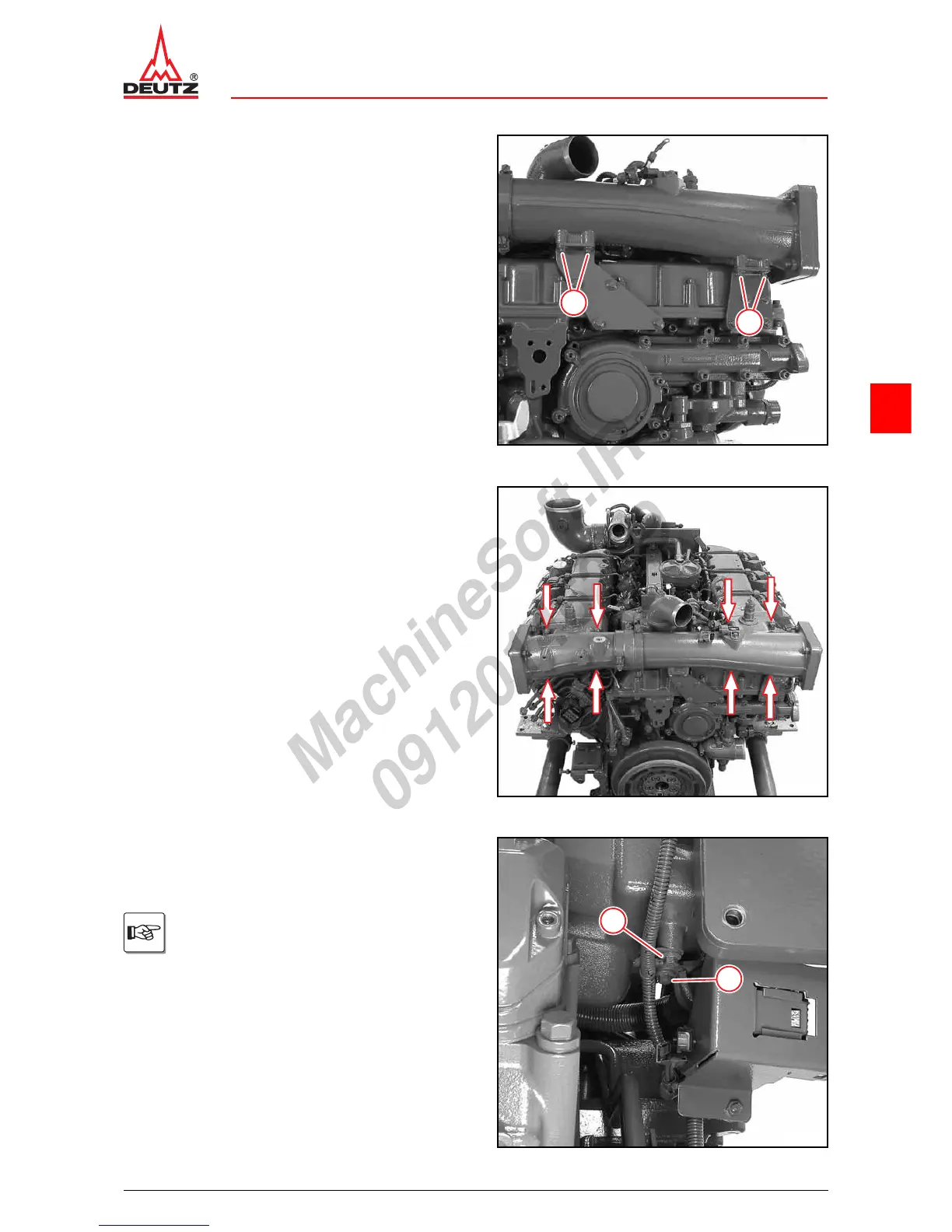

z Tighten screws (1).
 A06 056
1
1
© 40742-0
z Tighten nuts (arrows).
 A06 033
© 40749-0
z Lay cable.
z Tighten screws .
 A13 090
Screw length:
M8 x 20 mm (1)
M8 x 16 mm (2)
1
2
© 40750-0
