Deutz TCD 2015 - Page 401

© 06/2006 8202-001
1/10
TCD 2015 Railway
Exhaust system/Charging
W 06-02-05
6

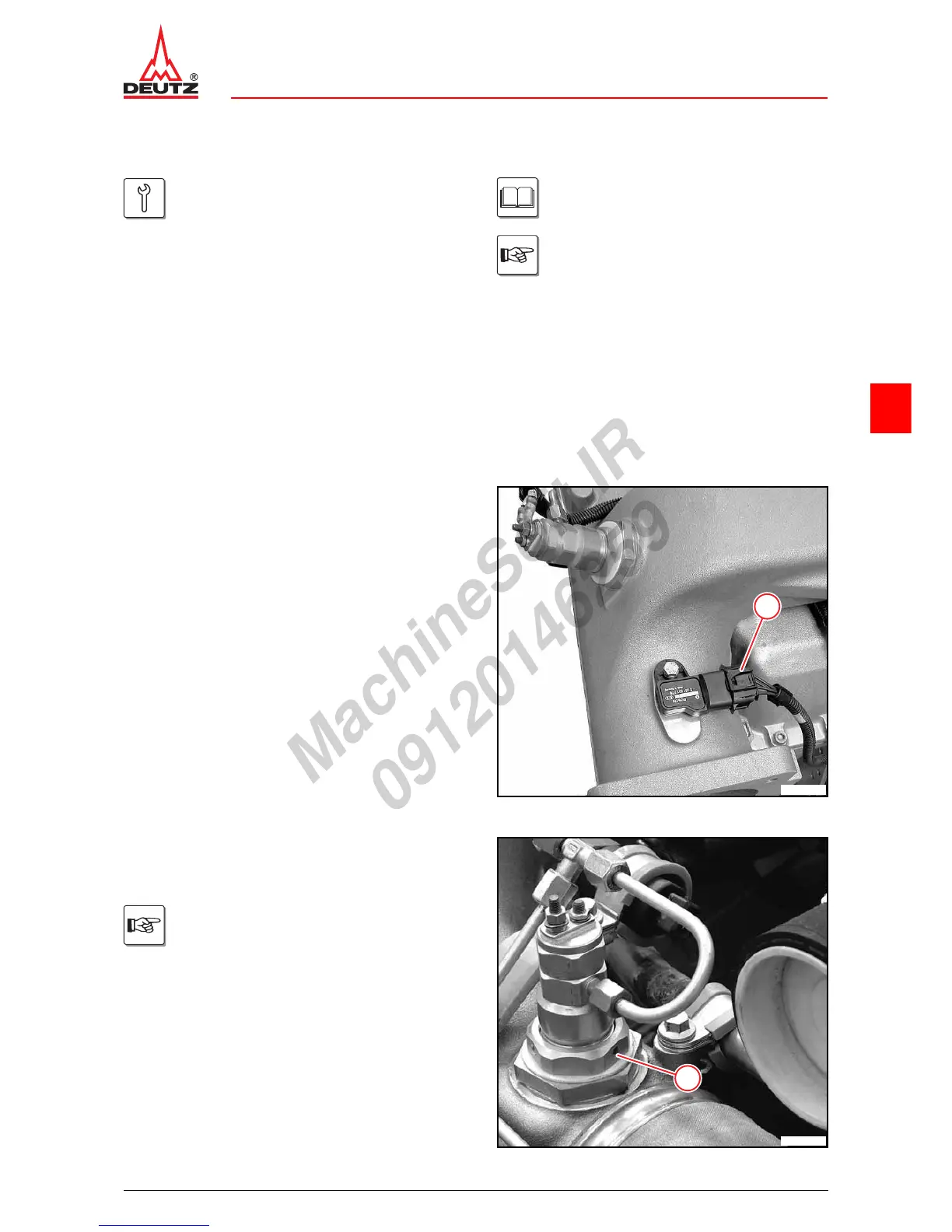

Removing and installing connecting pipe
Commercial available tools – W 07-01-04 . . . . . . . . . . . . (Railway)
Ensure that the cables are connected pro-
perly.
Removing connecting pipe
z Unlock cable plug (1) and remove.
1
© 45926-0
z Unscrew screw (1).
z Remove spring washer.
z Remove ground cable.
Mark assignment of cables/connections
before removing.
1
© 45907-0
