Deutz TCD 2015 - Page 416

TCD 2015
Exhaust system/Charging
W 06-06-04
© 06/2006 8203-001
6/8
6

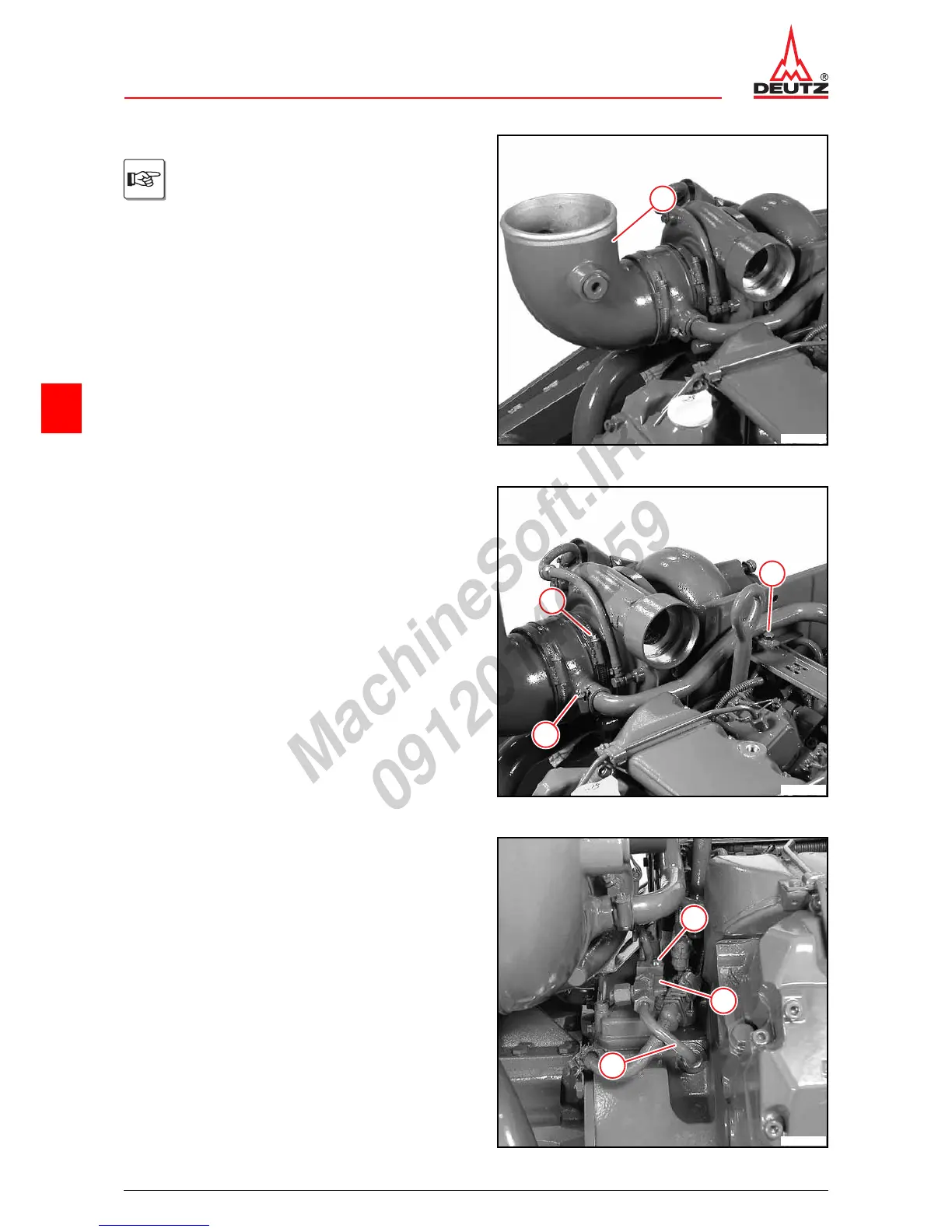

z Mount intake elbow (1).
z Insert pipe.
Note installation position.
1
© 40757-0
z Position hose clips.
z Tighten hose clip (2).
 A03 064
z Tighten hose clip (3).
 A06 021
z Tighten screw (1).
 A03 069
1
3
2
© 45402-0
z Mount lubricating oil pipe (3).
z Position holder (2).
z Tighten screw (1).
 A08 079
1
3
2
© 45373-0
