Deutz TCD 2015 - Page 433

© 06/2006 8206-001
3/6
TCD 2015
Exhaust system/Charging
W 06-07-03
6

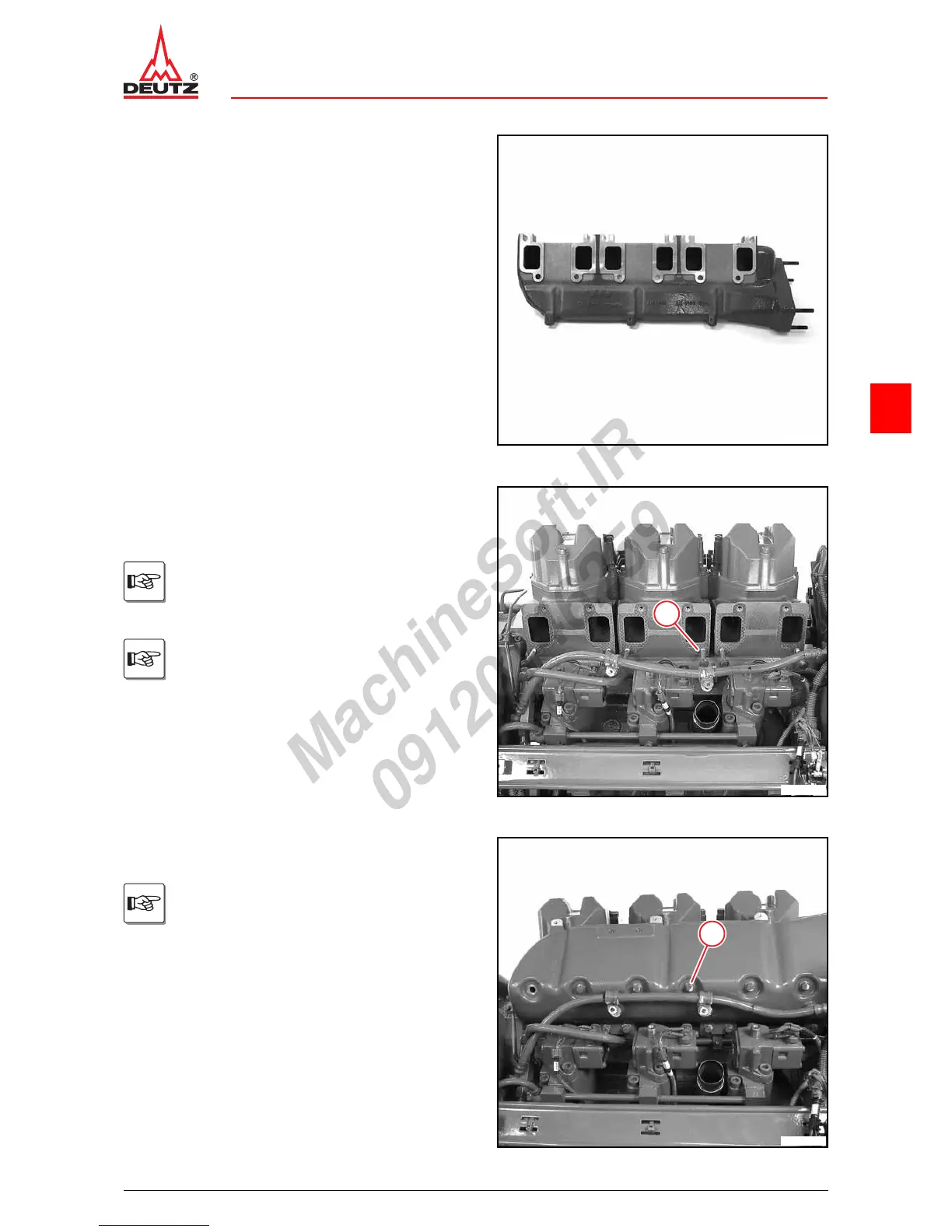

z Visually inspect the components.
© 40568-0
Installing charge air pipe
z Clean sealing surfaces.
z Mount new gaskets.
z Turn in all screws (1) a few turns.
Note installation position.
Screw length:
M8 x 65 mm
1
© 40574-0
z Insert charge air pipe.
z Fasten all screws (1).
Screw length:
M8 x 100 mm
1
© 40575-0
