Deutz TCD 2015 - Page 442

TCD 2015
Fuel system
W 07-01-02
© 06/2006 8208-001
2/4
6

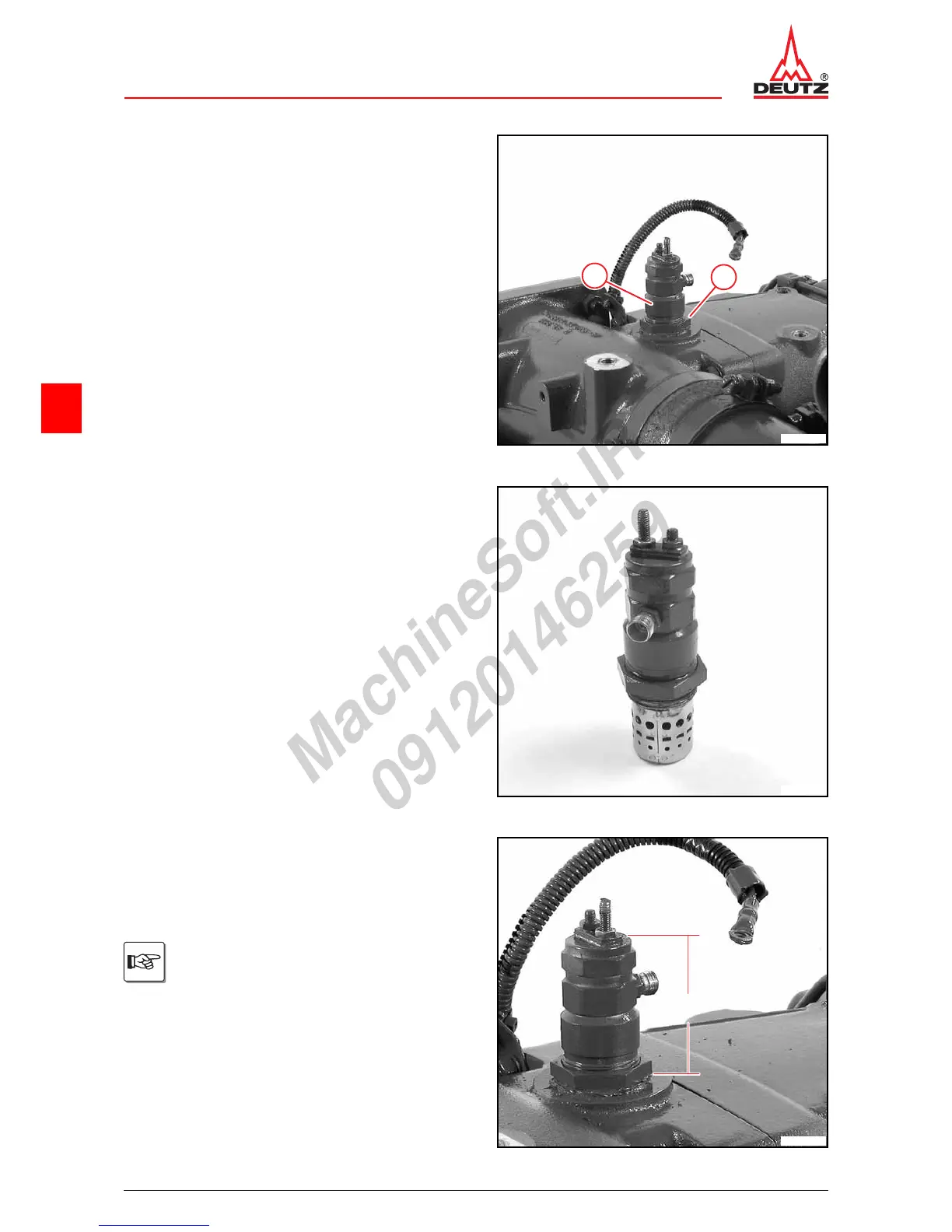

z Loosen lock nut (1).
z Unscrew flame glow plug (2).
z Remove gasket.
1
2
© 40771-0
z Visually inspect the components.
© 40772-0
Installing flame glow plug
z Mount new gasket.
z Screw in flame glow plug.
 P13 66
Note screw-in height dimension (X).
X
© 45404-0
