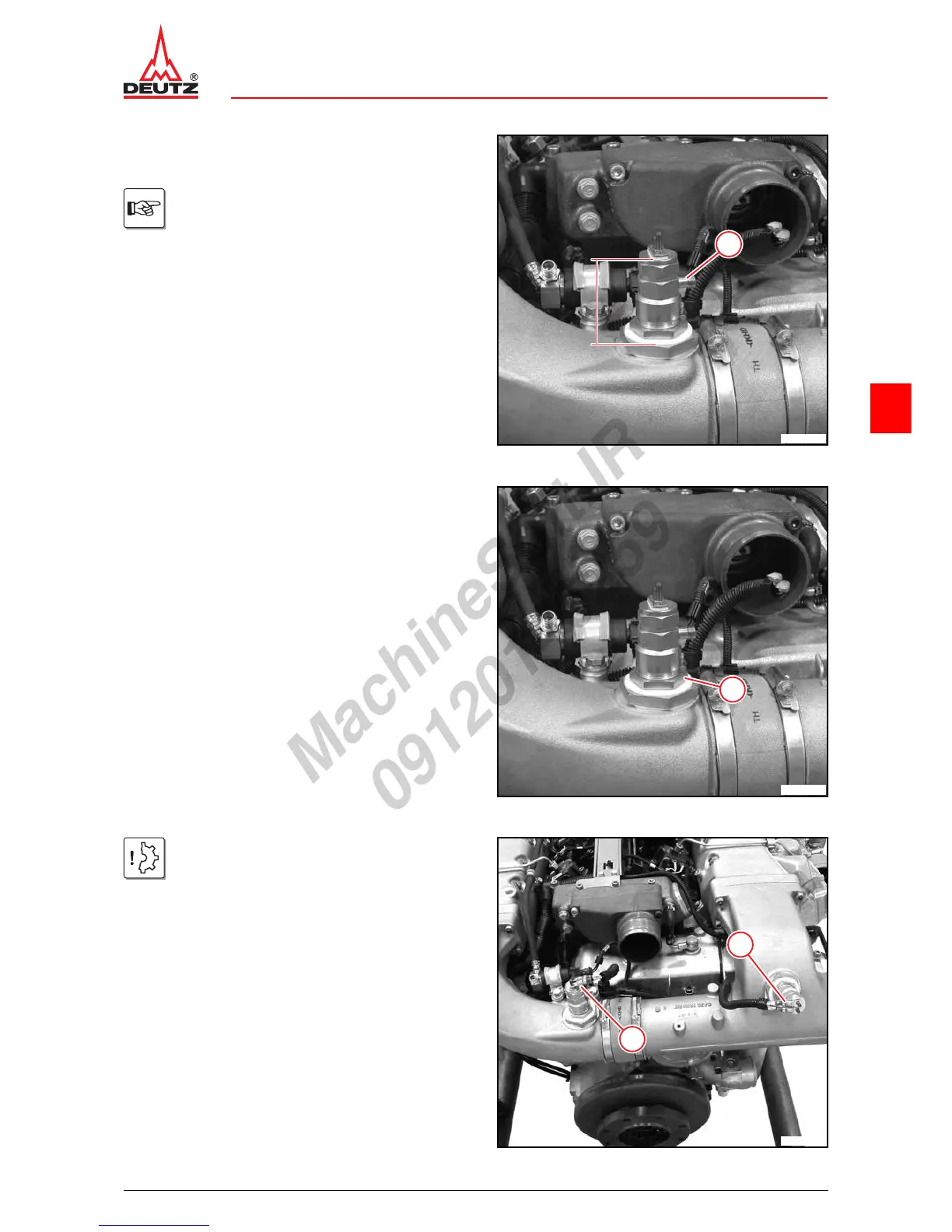

z Position flame glow plug.
 P13 66
Note screw-in height dimension (X).
Screw-in nipple (1) faces crankshaft at a
right angle (90°).
1
X
© 45911-0
z Tighten lock nut (1).
 A07 059
1
© 45927-0
z Connect plus cable (R3.1) to flame glow plug (1).
z Connect plus cable (R3.2) to flame glow plug (2).
Attention!
Note assignment and polarity of the electri-
cal connections!
1
2
© 45928-0
