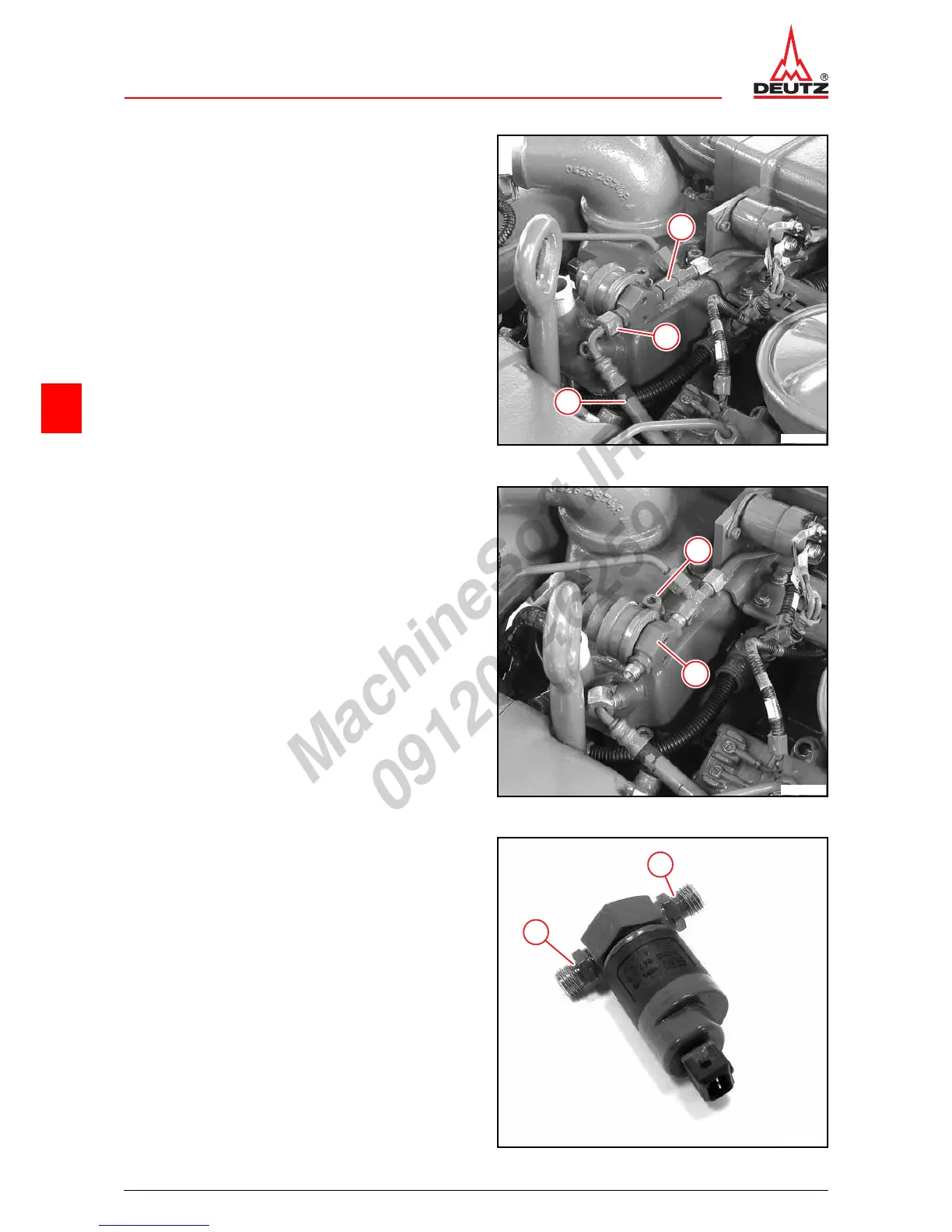

Deutz TCD 2015 - Page 452

TCD 2015
Fuel system
W 07-01-03
© 06/2006 8210-001
2/6
6
z Hold screw-in nipple.
z Unscrew lock nut (1).
z Hold screw-in nipple.
z Unscrew lock nut (2).
z Remove fuel pipe (3).
1
2
3
© 40776-0
z Unscrew screw (1).
z Remove spacing sleeve.
z Remove fuel shut-off valve (2).
z Remove pipe clamp.
1
2
© 40778-0
z Unscrew screw-in nipple (1).
z Visually inspect the components.
1
1
© 40779-0
