Deutz TCD 2015 - Page 455

© 06/2006 8210-001
5/6
TCD 2015
Fuel system
W 07-01-03
6

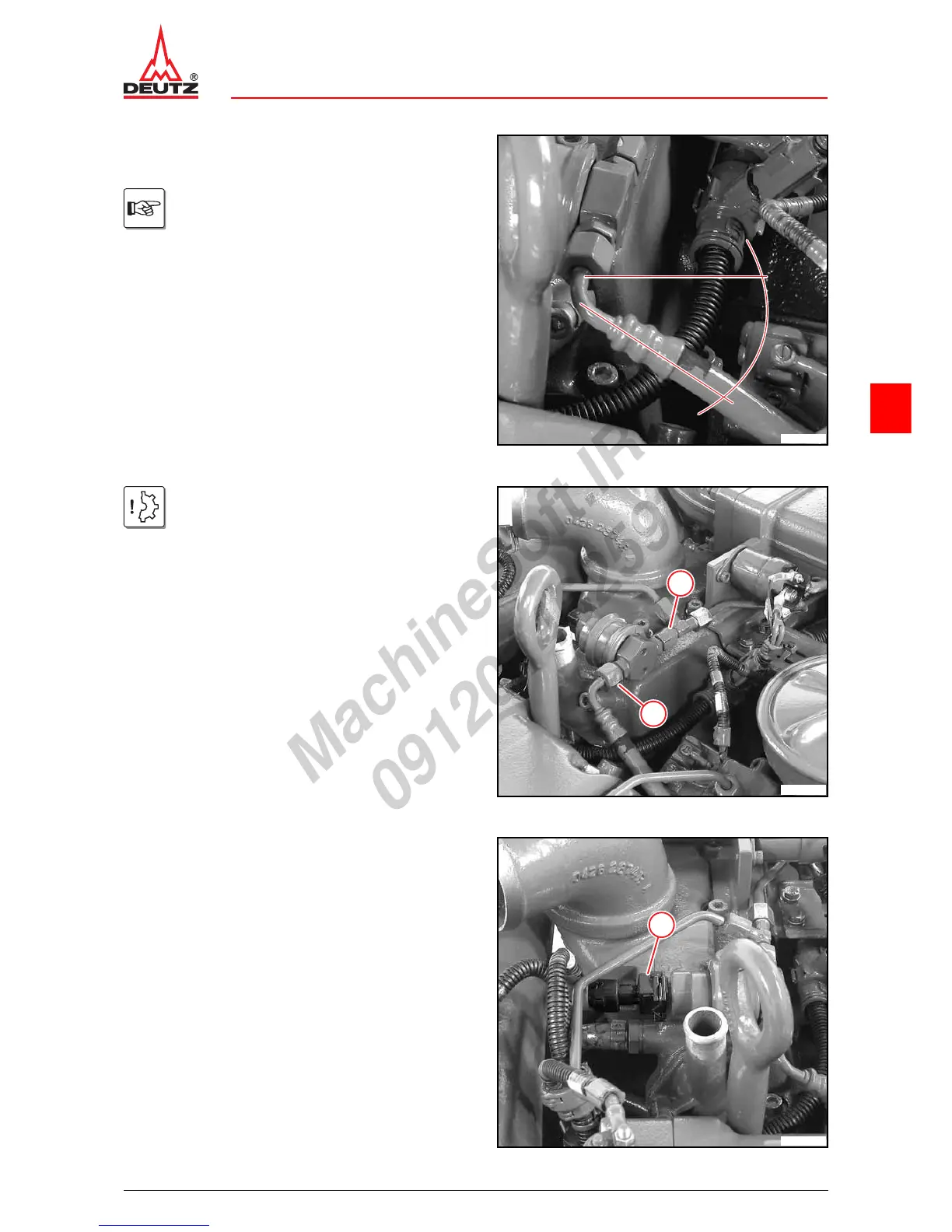

z Position fuel pipe.
 P07 92
Note installation angle, dimension (X).
X
© 45407-0
z Hold screw-in nipple.
z Tighten lock nuts (1).
 A07 018
Attention!
Install fuel pipes tension free!
1
1
© 40784-0
z Plug in the cable plug (1).
1
© 40951-0
