TCD 2015
Fuel system
W 07-03-01
6

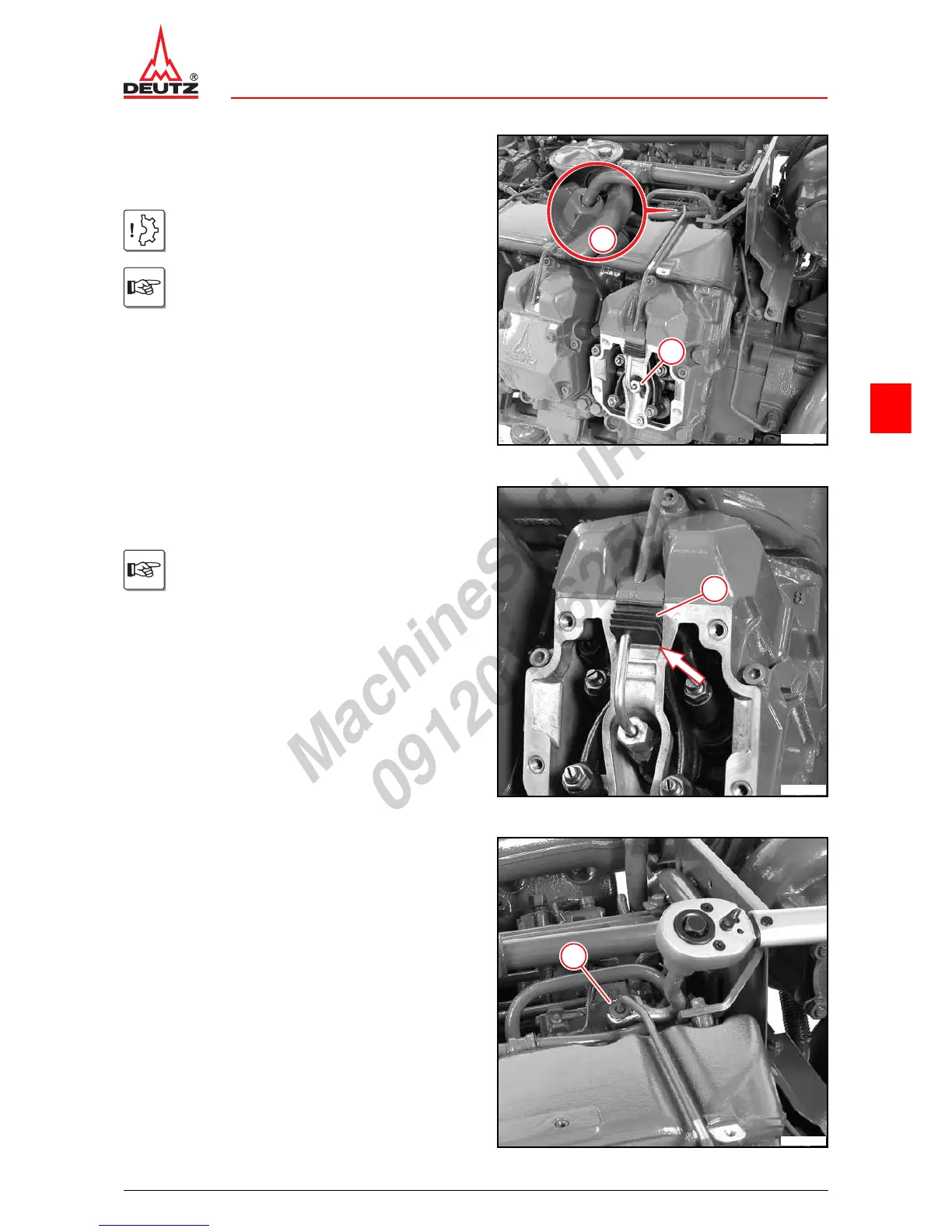

Installing injection pipes
z Mount new injection pipe.
z Screw on union nuts (1).
Attention!
Install injection pipes without tension!
Note assignment and installation position
of the injection lines.
1
1
© 40793-0
z Oil the injection pipe in the area of the profile
washer (1).
z Position profile washer (1).
The profile washer must be at the upper
web (arrow) of the cylinder head cowling.
1
© 40634-0
z Tighten lock nuts (1) with dog wrench.
A07 003
1
© 40800-0
