Deutz TCD 2015 - Page 485

© 06/2006 8216-001
3/10
TCD 2015
Fuel system
W 07-04-01
6

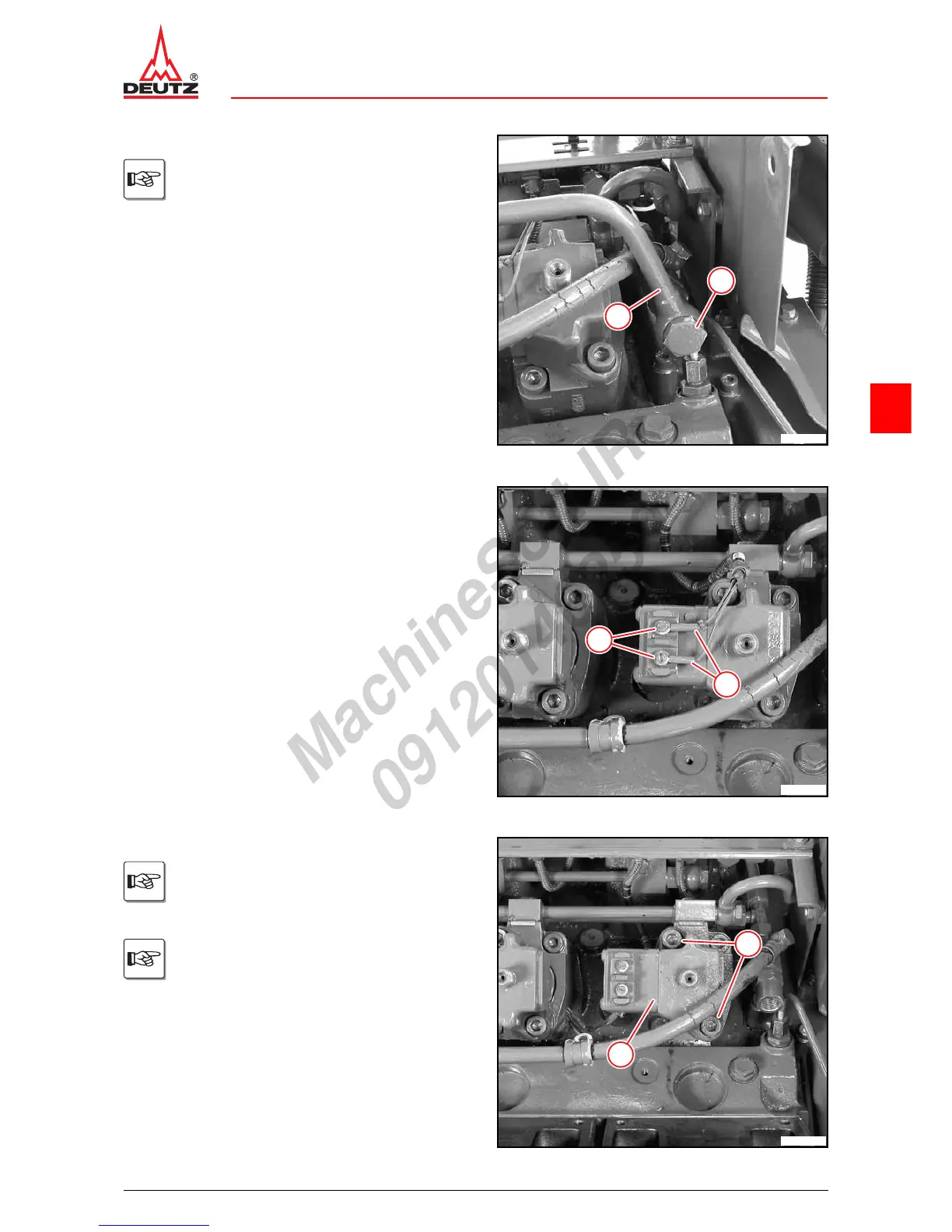

z Unscrew hollow screw (1).
z Remove fuel pipe (2).
z Remove sealing rings.
Hold overflow valve.
1
2
© 40522-0
z Loosen screws (1).
z Pull off cables (2).
1
2
© 40809-0
z Unscrew screws (1).
z Remove fuel injector pump(2).
Loosen screws evenly to avoid jamming
the injection pump.
Lay out components in the order in which
they should be installed.
1
2
© 45386-0
