Deutz TCD 2015 - Page 489

© 06/2006 8216-001
7/10
TCD 2015
Fuel system
W 07-04-01
6

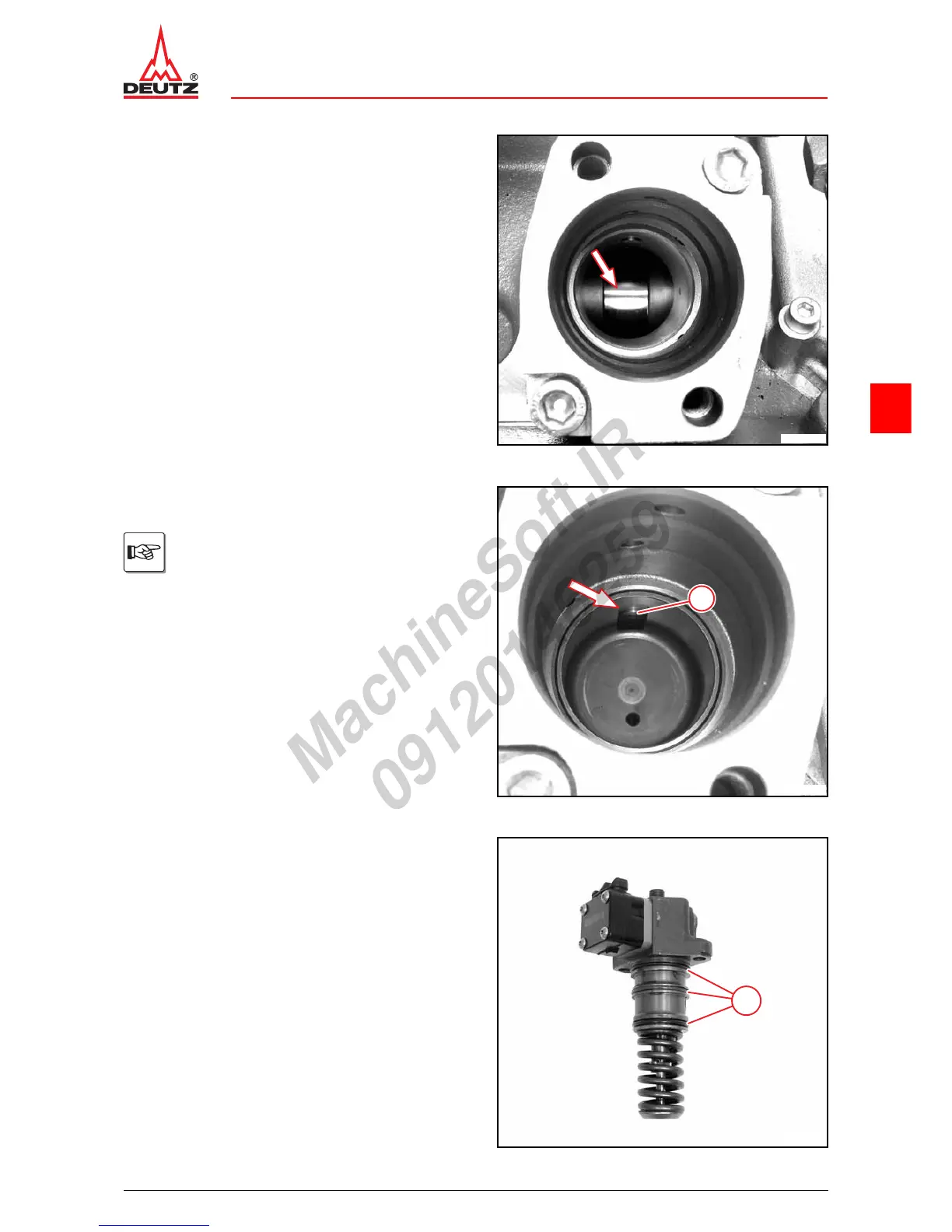

z Attach turning gear.
 W 04-06-03
z Turn the injection pump camshaft with the turning
gear until the cam for the injection pump is on the
cam base circle (arrow).
© 42163-1
z Oil the roller tappet lightly.
z Insert roller tappet.
The pilot pin (1) must lock in
groove (arrow).
1
© 42164-1
z Mount new O-rings (1).
z Oil O-rings lightly.
1
© 42165-2
