Deutz TCD 2015 - Page 491

© 06/2006 8216-001
9/10
TCD 2015
Fuel system
W 07-04-01
6

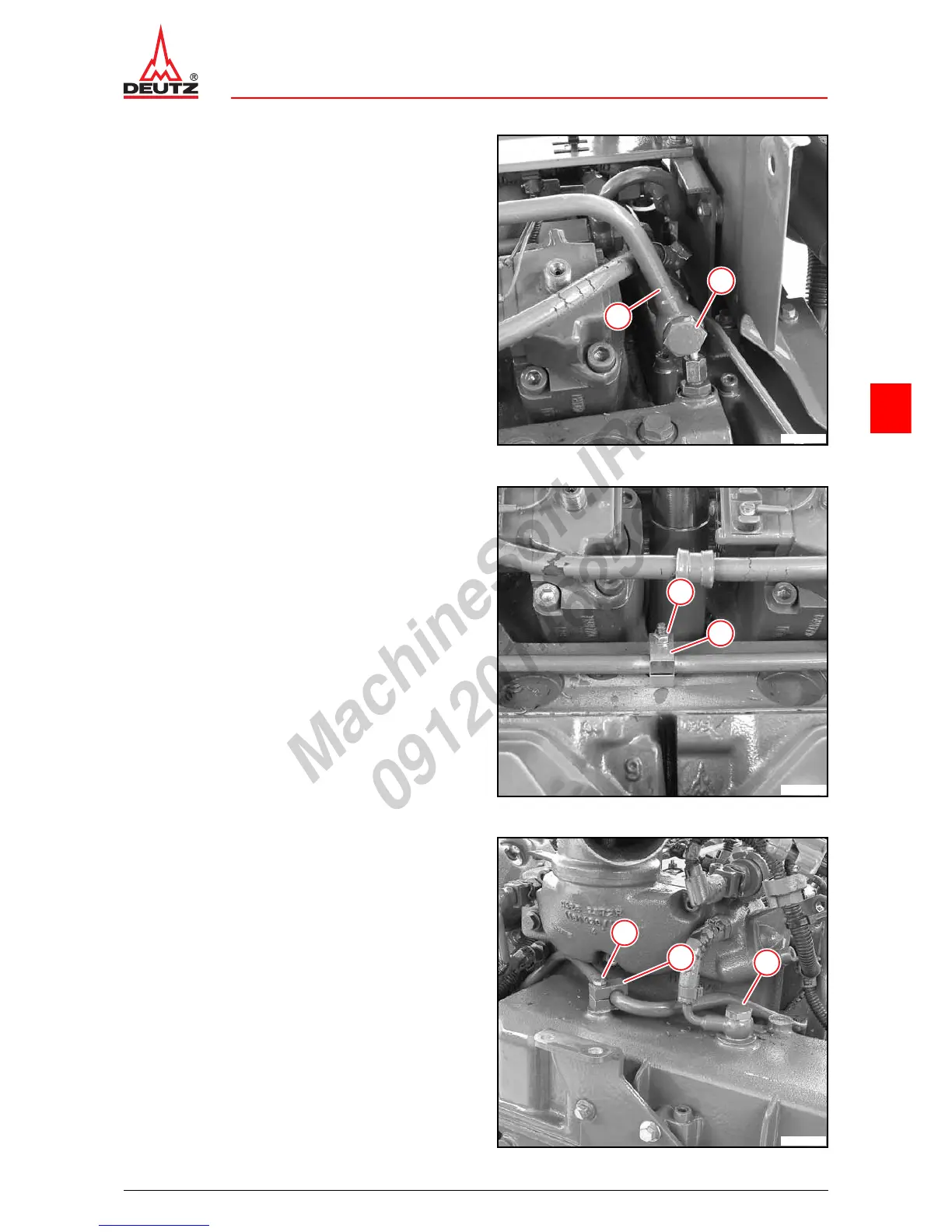

z Mount new sealing rings.
z Mount fuel pipe (2).
z Screw on hollow screw (1).
1
2
© 40522-0
z Oil the thread lightly.
z Mount holder (2).
z Screw on nut (1).
1
2
© 40521-0
z Mount new sealing rings.
z Screw on hollow screw (3).
z Mount holder (2).
z Oil thread and head contact surface lightly.
z Fasten screw (1).
1
2
3
© 40520-0
