TCD 2015
Fuel system
W 07-04-01
© 06/2006 8217-001
6/8
6

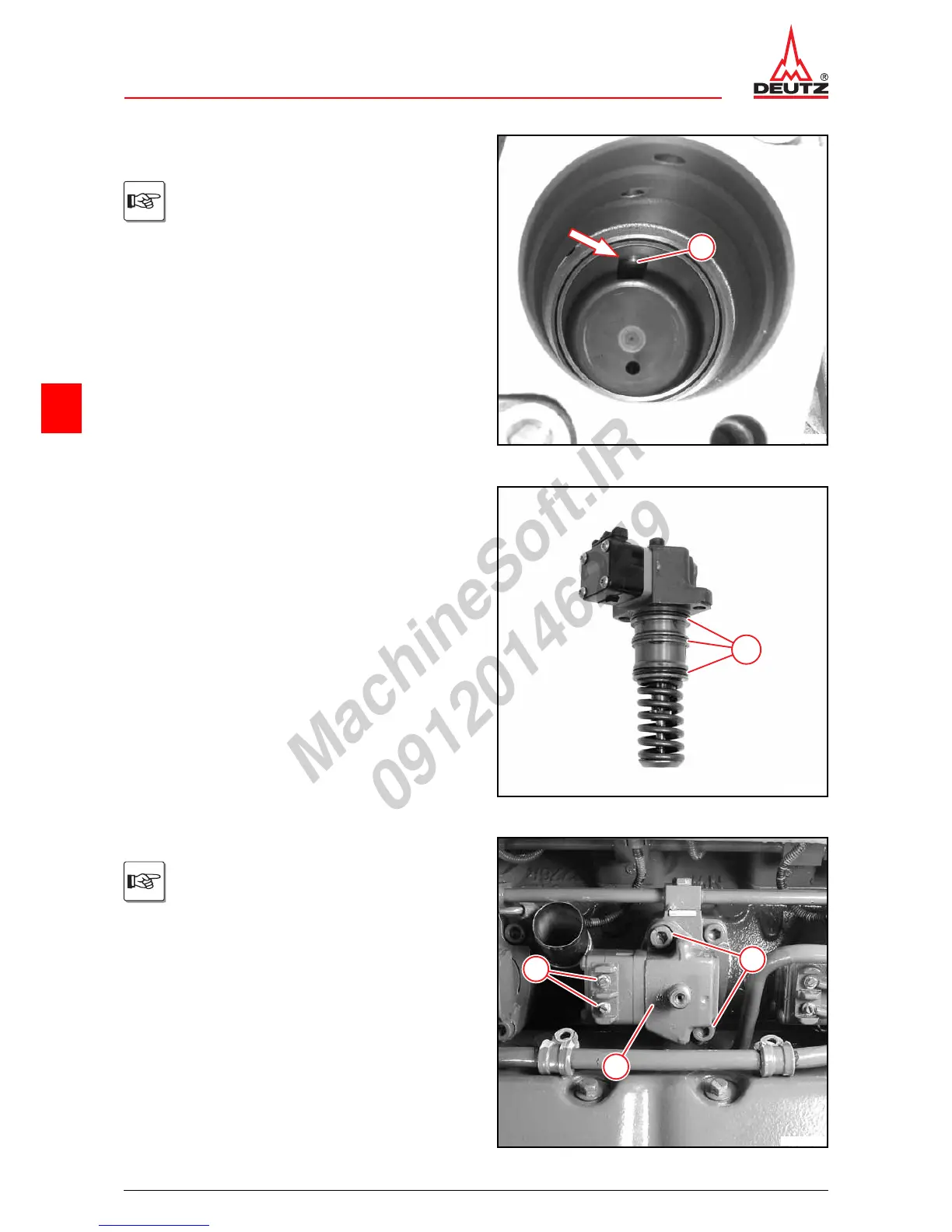

z Oil the roller tappet lightly.
z Insert roller tappet.
The pilot pin (1) must lock in
groove (arrow).
1
© 42164-1
z Mount new O-rings (1).
z Oil O-rings lightly.
1
© 42165-2
z Insert injection pump (1).
z Lightly oil screws (2).
z Tighten screws (2).
Note assignment!
A-bank:
The cable connections (3) of the injection
pumps must face the genset support.
B-bank:
The cable connections (3) of the injection
pumps must face the flywheel.
2
1
3
© 45382-0
