TCD 2015
Fuel system
W 07-10-06
6

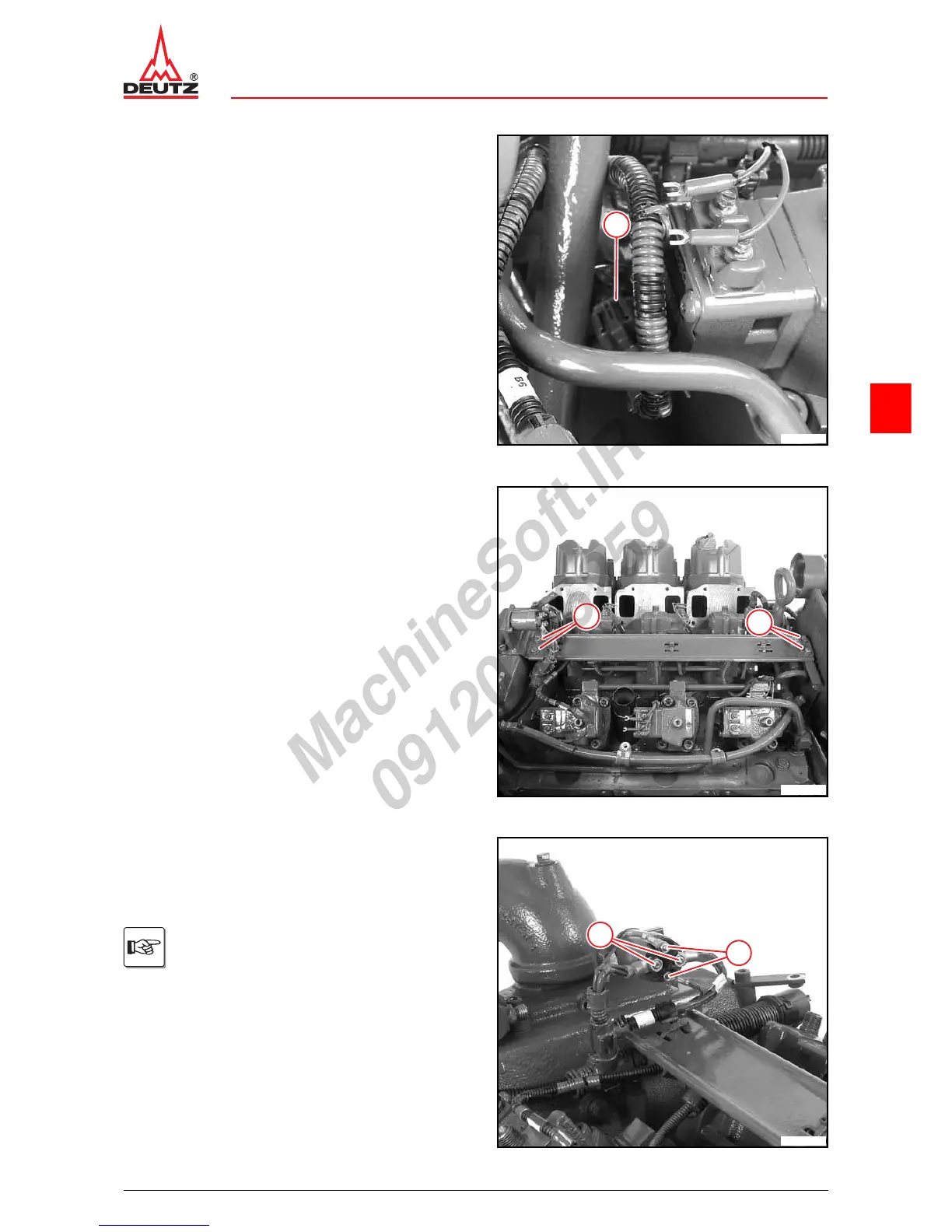

z Unlock cable plug (1) and remove.
1
© 40610-0
z Unscrew screws (1).
1
1
© 40611-0
z Unscrew nuts (1).
z Unscrew the nuts (2).
z Remove washers.
z Remove cables.
z Place cable harness rail with cable harness to one
side.
Mark assignment of cables/connections
before removing.
1
2
© 40612-0
