Deutz TCD 2015 - Page 545

© 06/2006 8223-001
9/14
TCD 2015
Fuel system
W 07-10-06
6

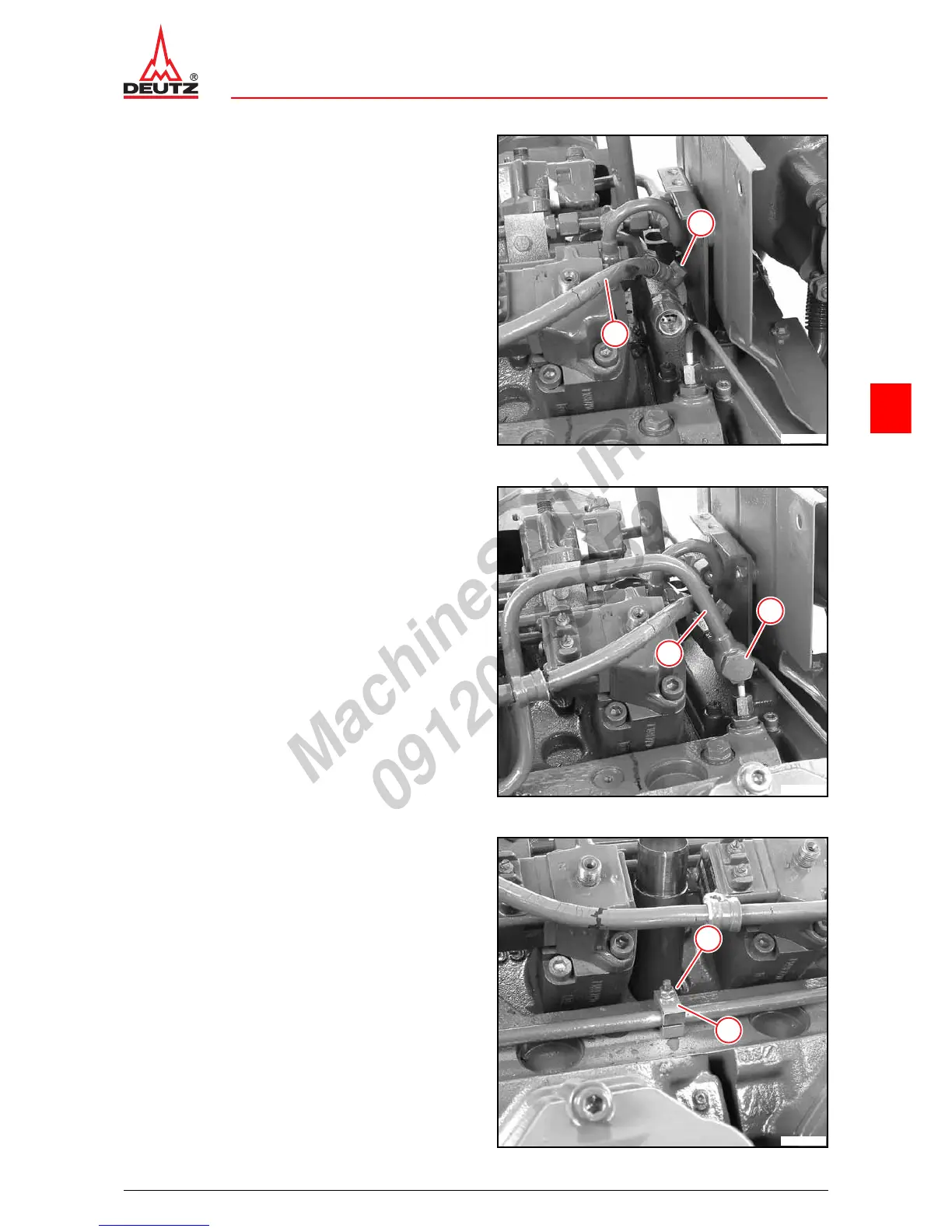

z Mount new sealing rings.
z Position fuel hose (2).
z Tighten hollow screw (1).
 A12 090
1
2
© 40616-0
z Mount new sealing rings.
z Mount fuel pipe (2).
z Screw on hollow screw (1).
1
2
© 40615-0
z Oil the thread lightly.
z Mount holder (2).
z Screw on nut (1).
1
2
© 40614-0
