Deutz TCD 2015 - Page 547

© 06/2006 8223-001
11/14
TCD 2015
Fuel system
W 07-10-06
6

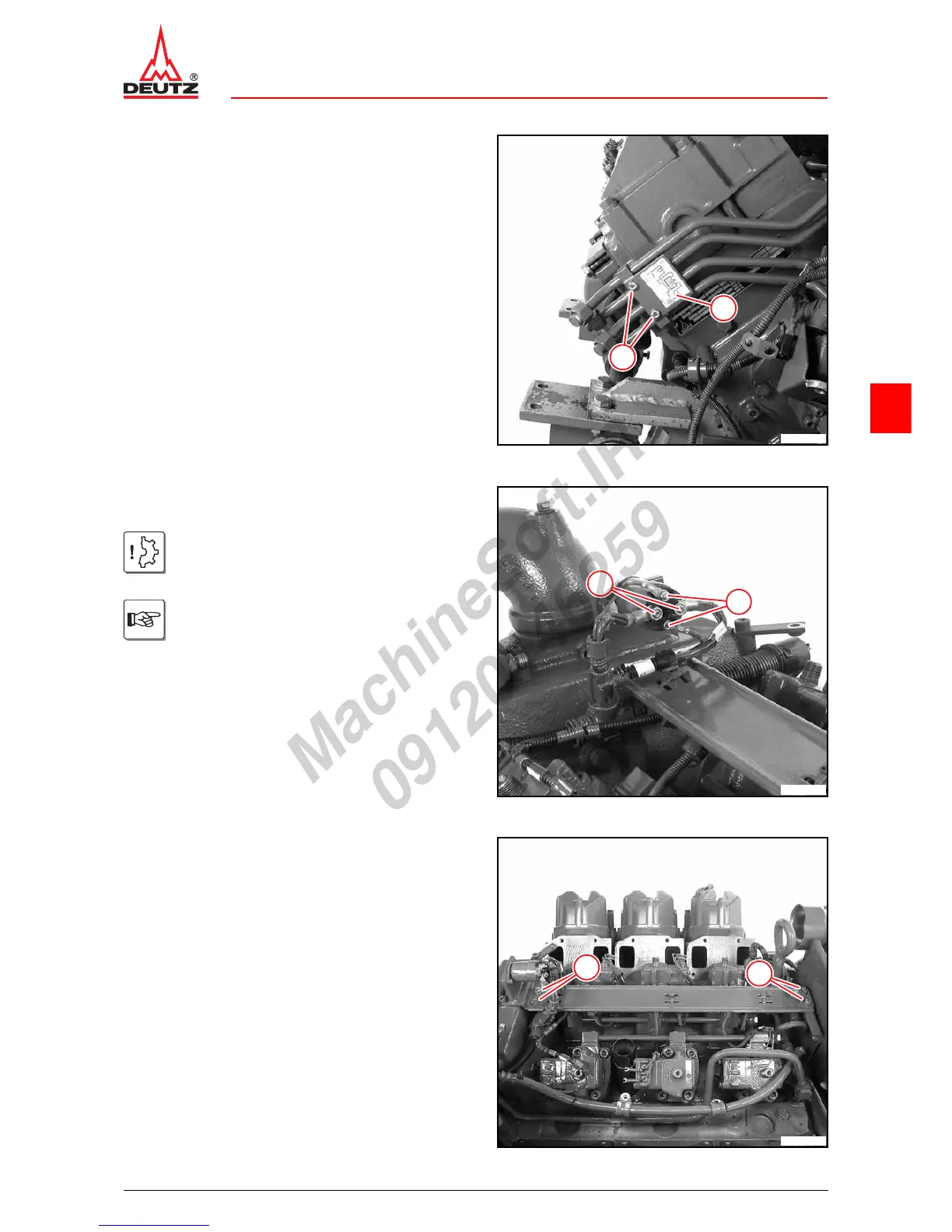

z Mount holder (2).
z Tighten screws (1).
 A07 044
1
2
© 40613-0
z Position cable harness rail with cable harness.
z Plug cables.
z Mount washers.
z Tighten nuts (1).
 A13 037
z Tighten nuts (2).
 A13 038
Attention!
Note assignment and polarity of the electri-
cal connections!
Connect cables according to marks made
before removing.
1
2
© 40612-0
z Tighten screws (1).
 A13 094
1
1
© 40611-0
