Deutz TCD 2015 - Page 560

TCD 2015
Fuel system
W 07-11-01
© 06/2006 8225-001
4/6
6

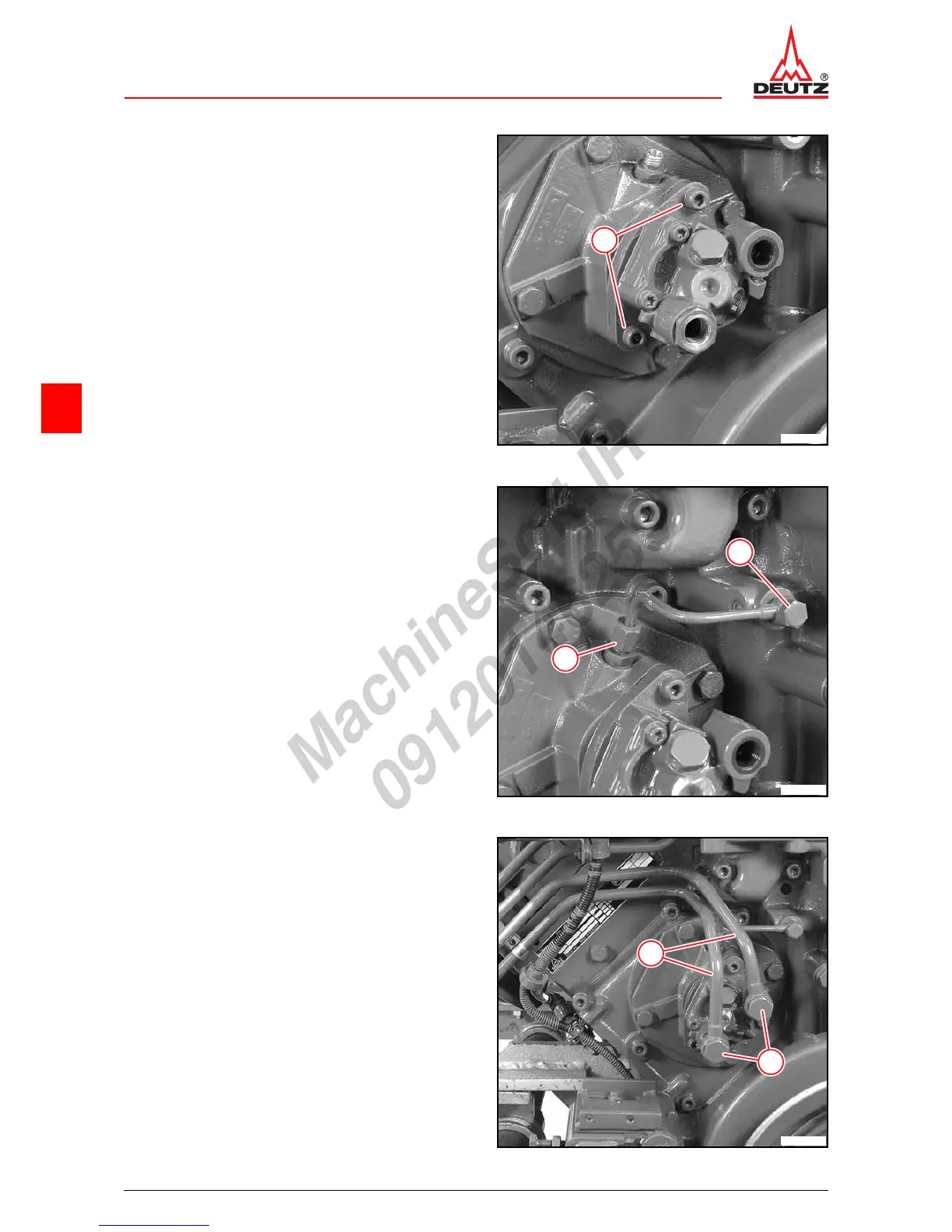

z Tighten screws (1).
 A07 024
1
© 40832-0
z Mount new sealing rings.
z Mount the lubricating oil pipe.
z Screw on hollow screw (1).
z Tighten lock nut (2).
 A08 014
z Tighten hollow screw (1).
 A08 013
1
2
© 40829-0
z Mount new sealing rings.
z Mount fuel pipes (2).
z Tighten hollow screws (1).
 A07 034
1
2
© 40828-0
