Deutz TCD 2015 - Page 574

TCD 2015 Railway
Fuel system
W 07-13-01
© 06/2006 8227-001
4/6
6

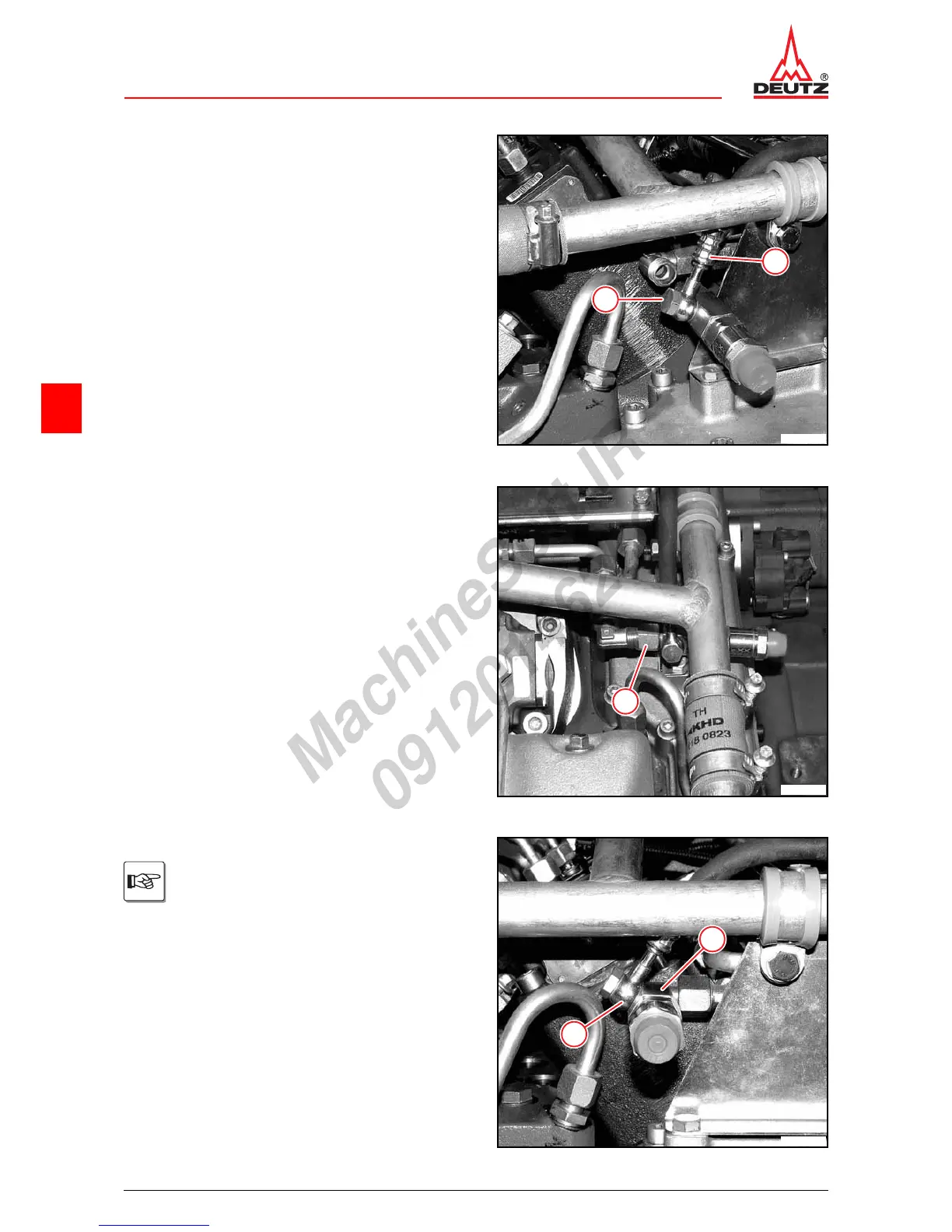

z Mount hose line (1).
z Mount new sealing rings.
z Screw on hollow screw (2).
2
1
© 45918-0
z Insert connector.
z Screw on lock nut (1).
1
© 45919-0
z Position connector (1).
Arrange hexagon area (1) horizontally.
The connection (2) faces approx. 45° to
the left.
1
2
© 45920-0
