© 06/2006 8230-001
5/6
TCD 2015
Lube oil system
W 08-04-07
6

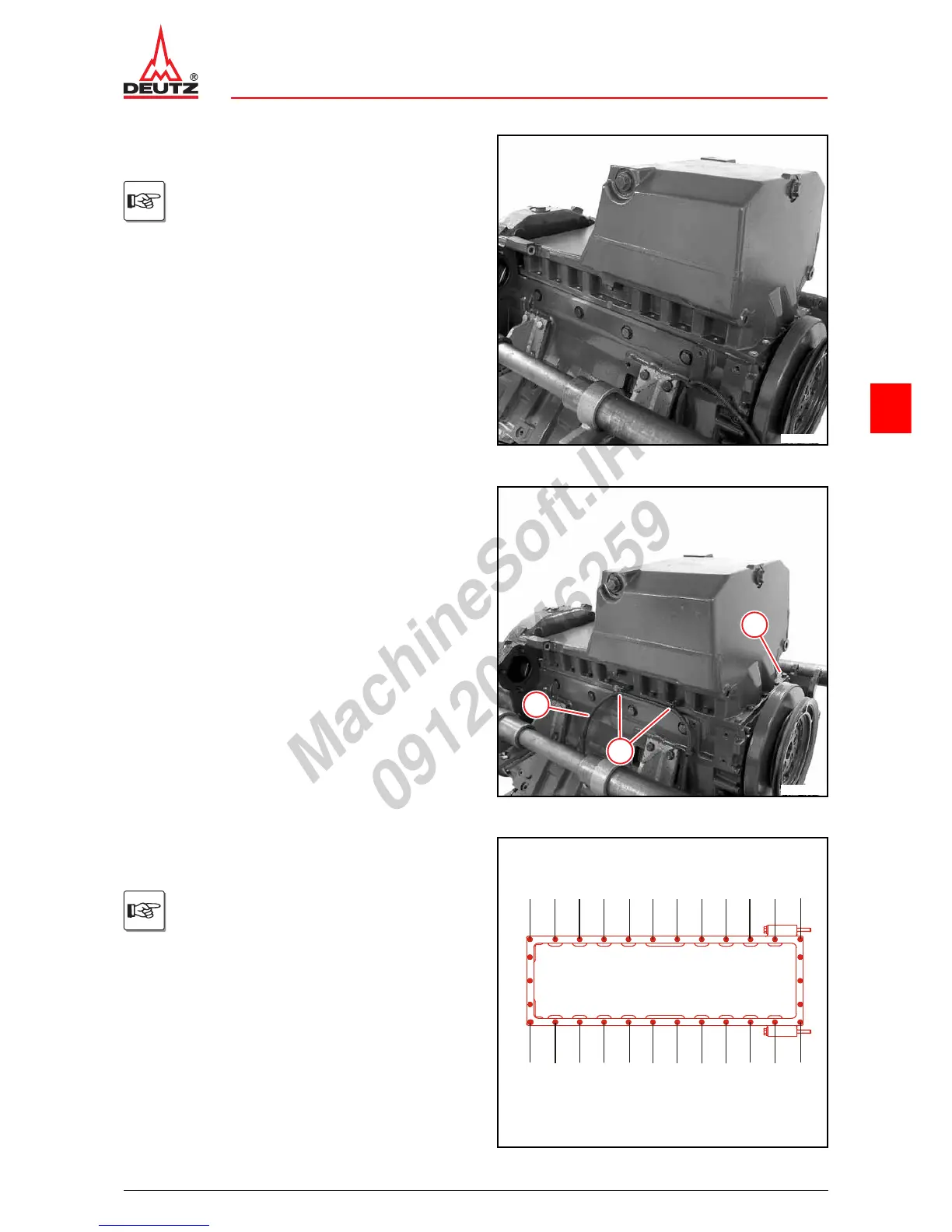

z Mount lubricating oil pan.
z Align lubricating oil pan to crankcase.
Ensure that the installation location of the
gasket is free from faults.
© 40846-0
z Mount holder (3).
z Position cable (2).
z Tighten screws (1) alternately.
3
1
2
© 40839-0
z Tighten all screws.
A03 030
See graphic for tightening sequence.
26
28
30
27
25
29
24 20 16 12 8 4 1 5 9 13 17 21
23 19 15 11 7 3 2 6 10 14 18 22
© 45421-1
