Deutz TCD 2015 - Page 600

TCD 2015
Lube oil system
W 08-08-02
© 06/2006 8232-001
2/8
6

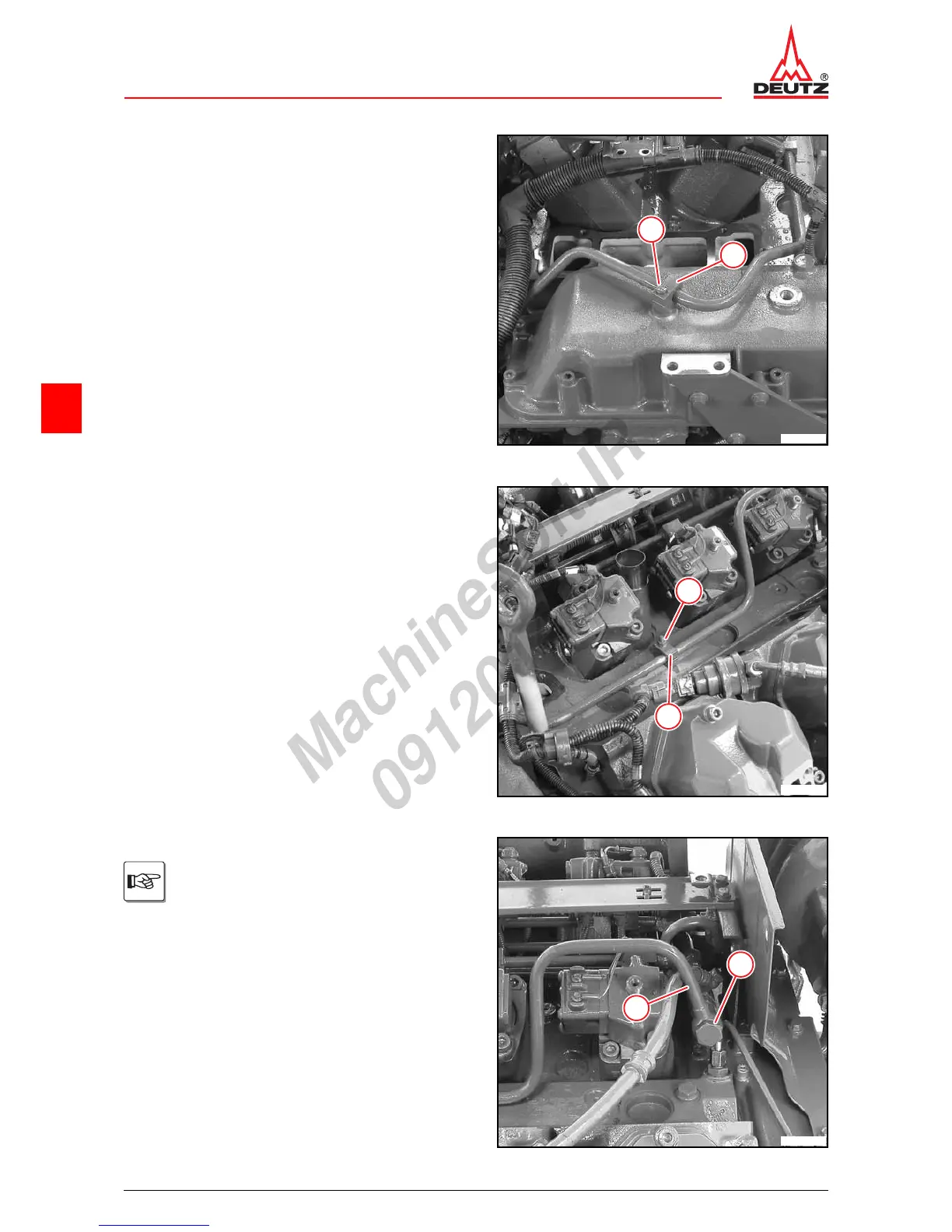

z Unscrew screw (1).
z Remove the holder (2).
1
2
© 40850-0
z Unscrew nut (1).
z Remove the holder (2).
1
2
© 40851-0
z Unscrew hollow screw (1).
z Remove fuel pipe (2).
z Remove sealing rings.
Hold overflow valve.
1
2
© 40852-0
