TCD 2015
Lube oil system
W 08-08-02
6

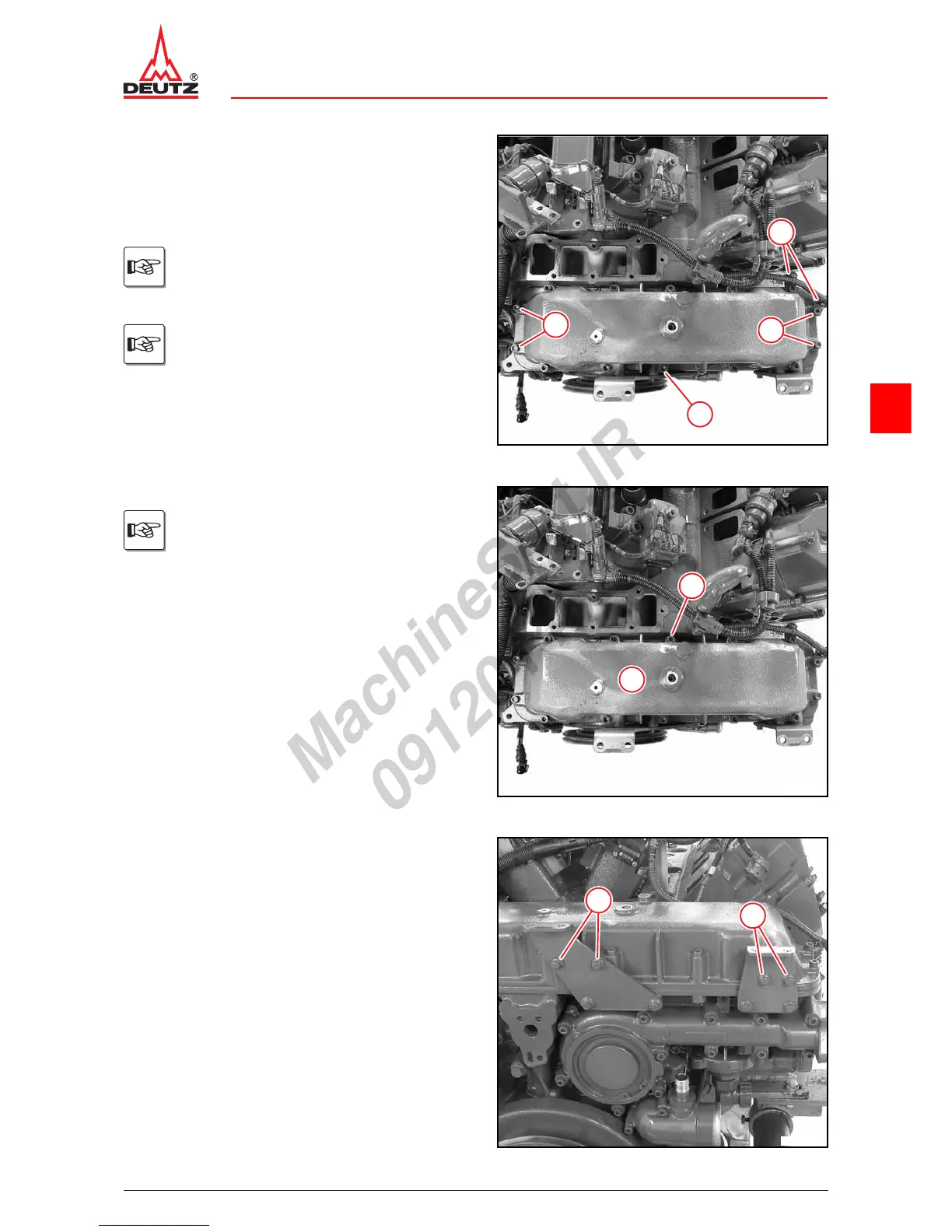

z Clean sealing surfaces.
z Mount new gasket.
z Mount oil cooler cover.
z Mount holder (1).
z Tighten screws (2).
z Fasten all screws (3).
Screw length:
M8 x 35 mm
Screw length:
M8 x 65 mm
2
3
2
1
© 40858-0
z Align oil cooler cover (2).
z Tighten all screws (1) alternately.
A08 050
The lay-on surfaces of the oil cooler cover
and the genset support must contact the
holders.
Do not move gasket.
2
1
© 40854-0
z Tighten screws (1).
A06 058
1
1
© 40853-0
