Deutz TCD 2015 - Page 622

TCD 2015
Cooling system
W 09-07-08
© 06/2006 8235-001
4/6
6

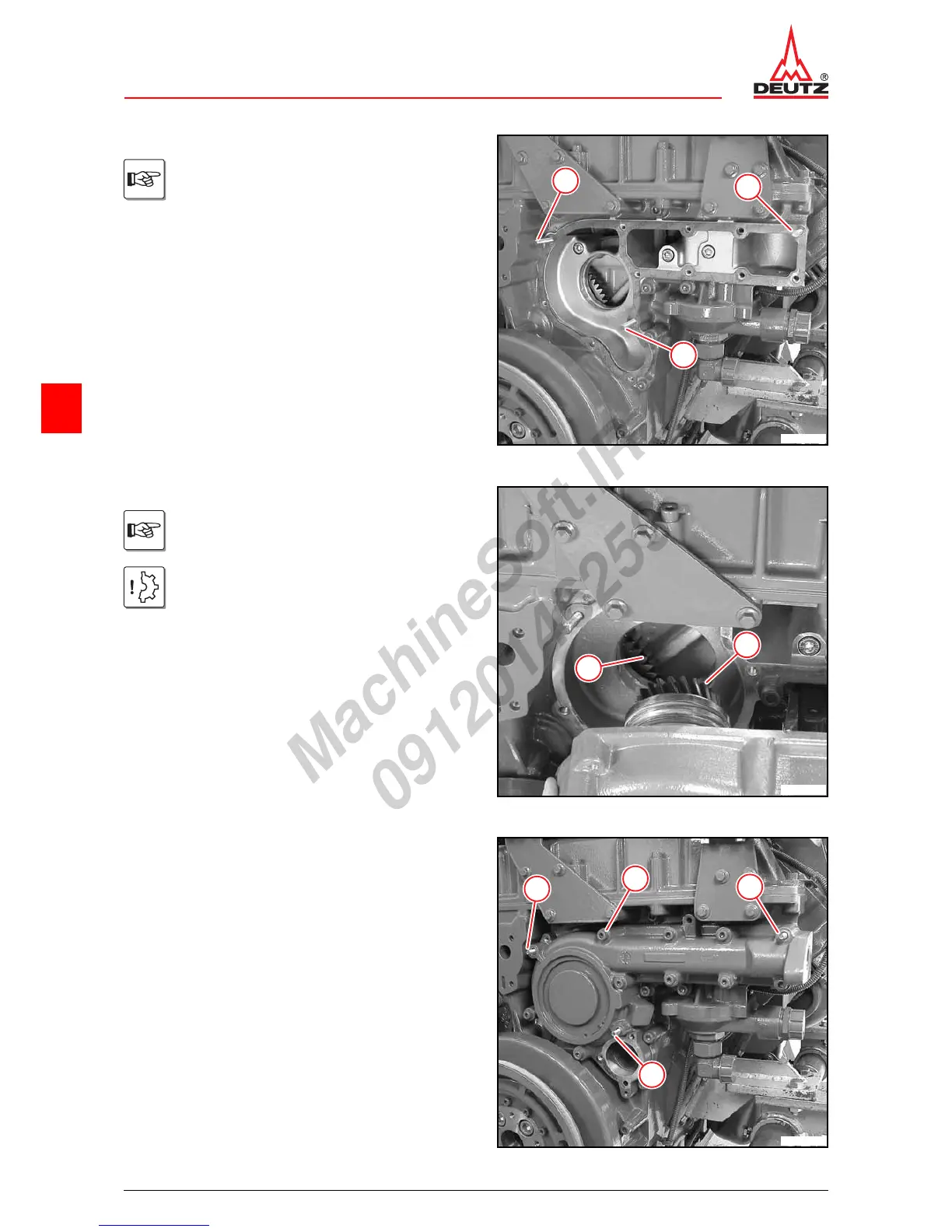

z Screw in studs (1).
z Mount new gasket.
To fix the gasket and the coolant pump.
1
1
1
© 40877-0
z Insert coolant pump.
The gear wheel (1) must engage the toot-
hing of the idler gear (2).
Attention!
Do not damage the gasket.
Do not move gasket.
1
2
© 40875-0
z Lightly oil screws (1).
z Fasten all screws (1).
z Unscrew studs (2).
1
2
2
2
© 40878-0
