TCD 2015
Cooling system
W 09-08-04
6

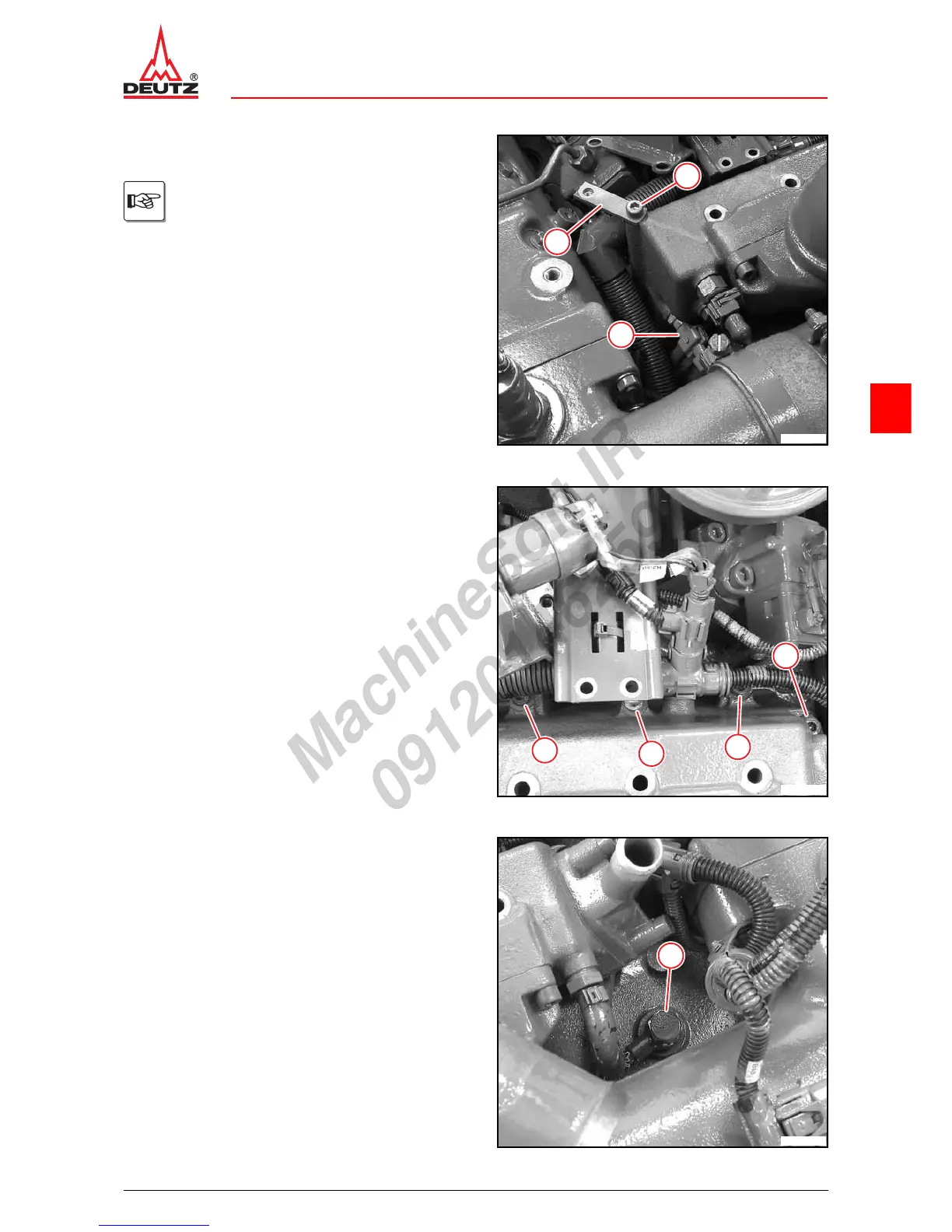

z Mount holder (1).
z Fasten screw (2).
z Plug in the cable plug (3).
Screw length:
M8 x 140 mm.
TIghten screw only after mounting the fuel
pipes (flame glow plugs).
2
1
3
© 40890-0
z Tighten screws (1).
 A09 001
z Tighten screws (2).
 A09 001
1
2
1
2
© 40894-0
z Mount new sealing rings.
z Tighten hollow screw (1).
 A12 092
1
© 40889-0
