Deutz TCD 2015 - Page 652

TCD 2015
Other components
W 12-08-04
© 06/2006 8243-001
4/4
6

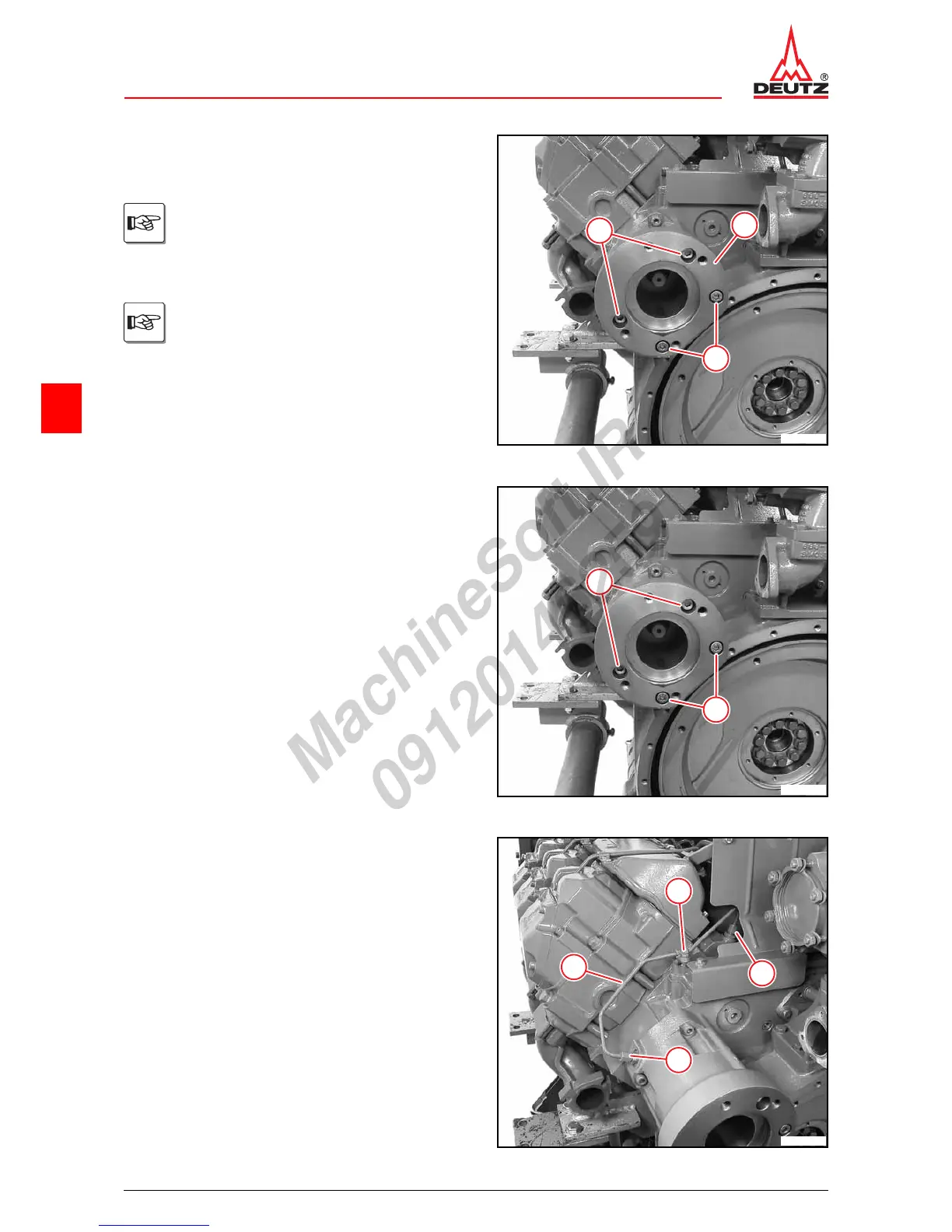

z Mount flange housing (1).
z Lightly oil screws (2).
z Tighten screws (2).
z Insert screws (3) with locking agent.
z Fasten screws (3).
Screw length:
M10x110mm
Screw length:
M10 x 210 mm
2
1
3
© 40915-0
z Tighten screws (1).
 A12 058
z Tighten screws (2).
 A12 059
1
2
© 45395-0
z Mount lubricating oil pipe (3).
z Fasten screw (1).
z Tighten lock nut (2).
 A12 082
z Tighten screw (1).
 A08 045
z Install exhaust pipe (A-bank).
 W 06-01-06
1
2
2
3
© 40908-0
