Deutz TCD 2015 - Page 663

© 06/2006 8244-001
11/20
TCD 2015
Electrical system
W 13-01-02
6

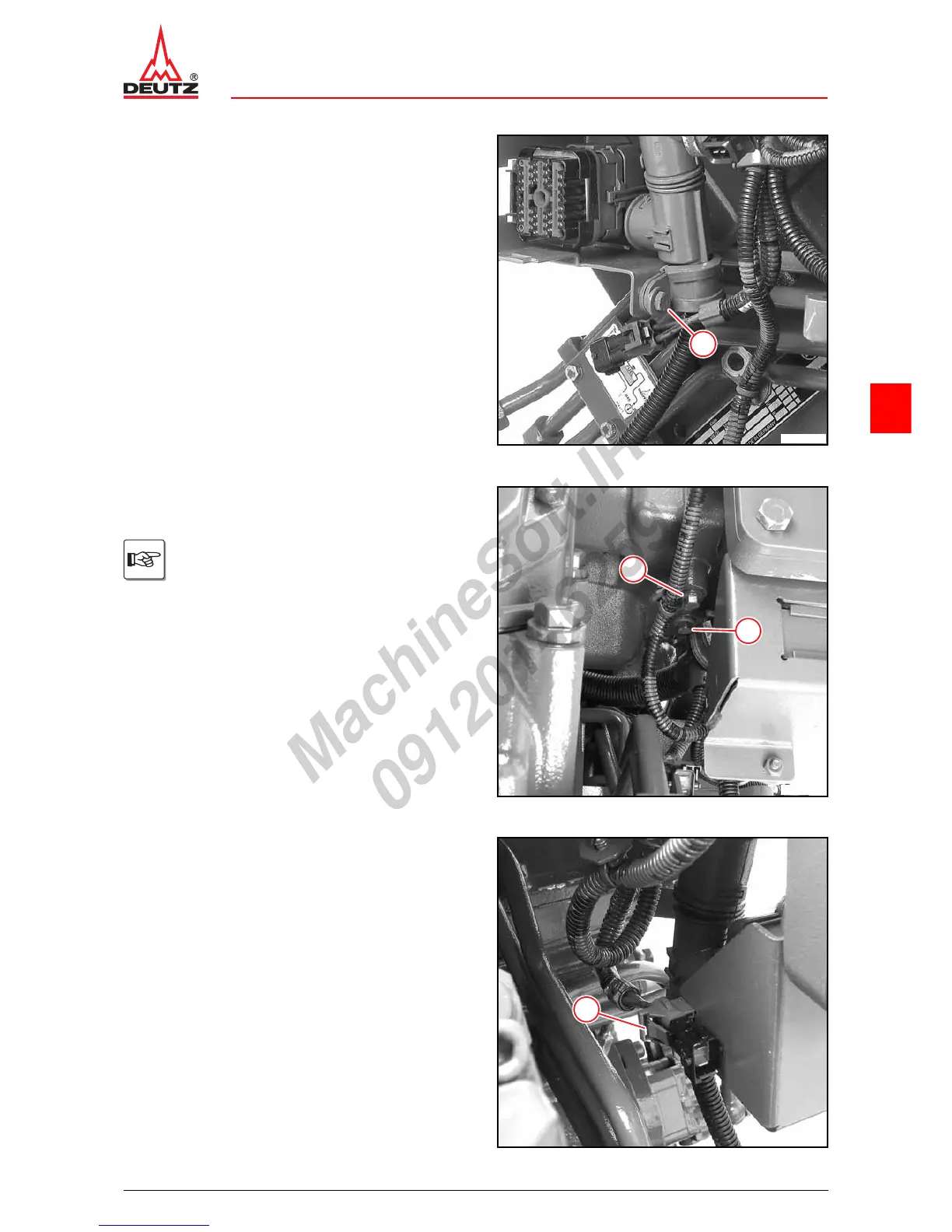

z Push the central plug onto the holder until it snaps in.
z Tighten screw (1).
 A12 095
1
© 40939-0
z Tighten screws .
 A13 090
Screw length:
M8 x 20 mm (1)
M8 x 16 mm (2)
1
2
© 40987-0
z Plug in the cable plug (1).
1
© 40937-0
