Deutz TCD 2015 - Page 667

© 06/2006 8244-001
15/20
TCD 2015
Electrical system
W 13-01-02
6

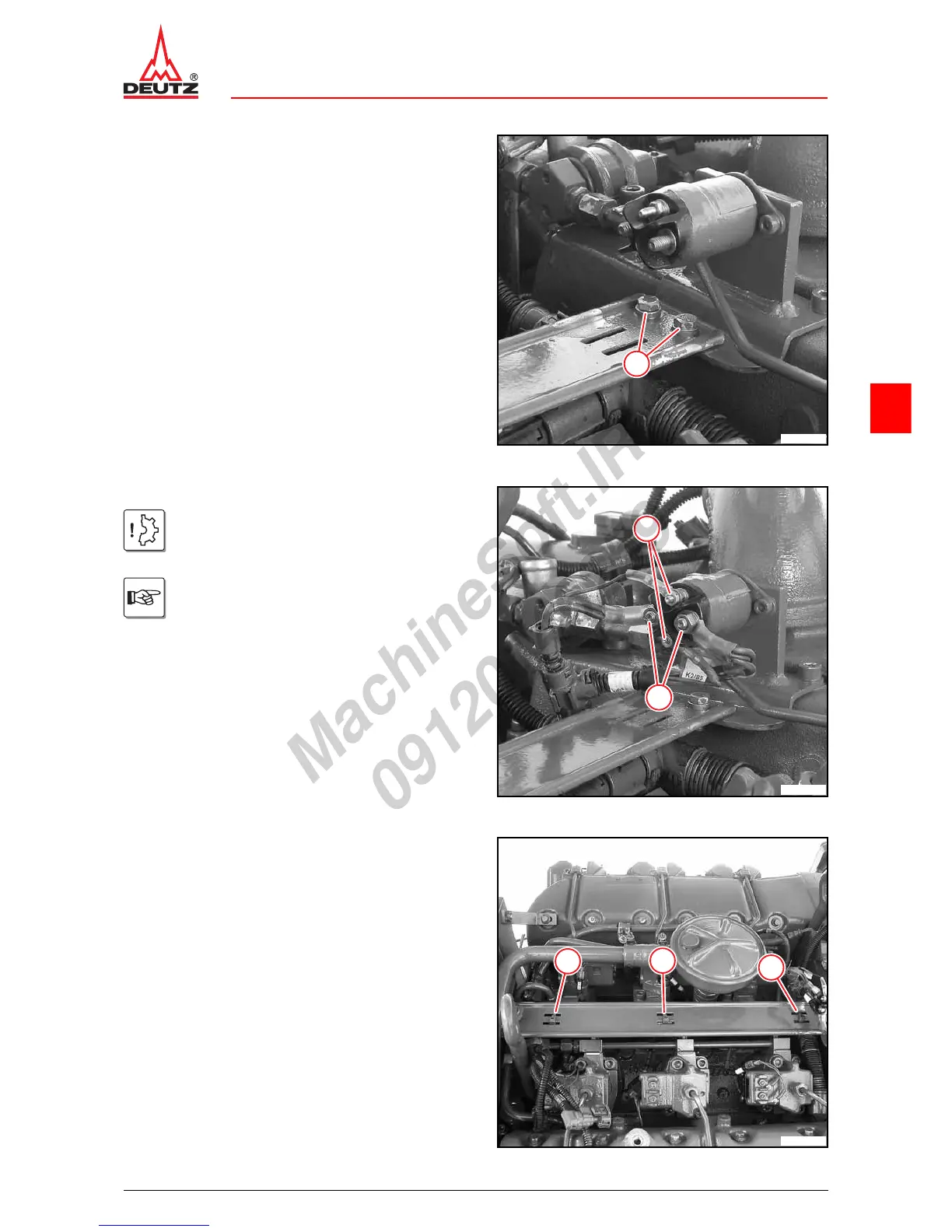

z Tighten screws (1).
 A13 094
1
© 40929-0
z Plug cables.
z Mount washers.
z Tighten nuts (1).
 A13 037
z Tighten nuts (2).
 A13 038
Attention!
Note assignment and polarity of the electri-
cal connections!
Connect cables according to marks made
before removing.
1
2
© 40928-0
z Lay cable harness and fix with cable ties (1).
1
1
1
© 40927-0
