Deutz TCD 2015 - Page 670

TCD 2015
Electrical system
W 13-01-02
© 06/2006 8244-001
18/20
6

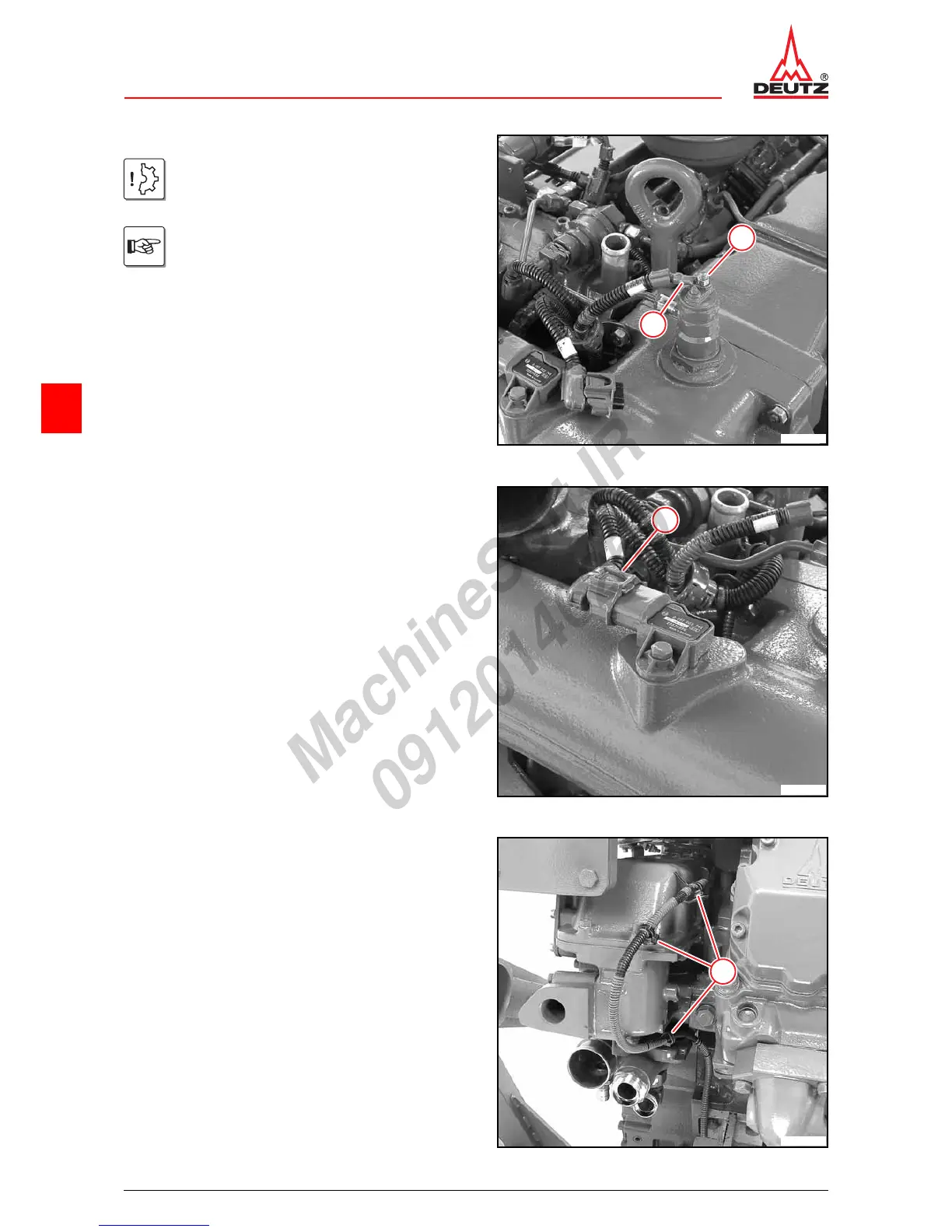

z Plug in cables (2).
z Mount washer.
z Tighten nut (1).
 A13 035
Attention!
Note assignment and polarity of the electri-
cal connections!
Connect cables according to marks made
before removing.
1
2
© 40920-0
z Plug in the cable plug (1).
1
© 40919-0
z Lay cable harness and fix with cable ties (1).
1
© 40918-0
