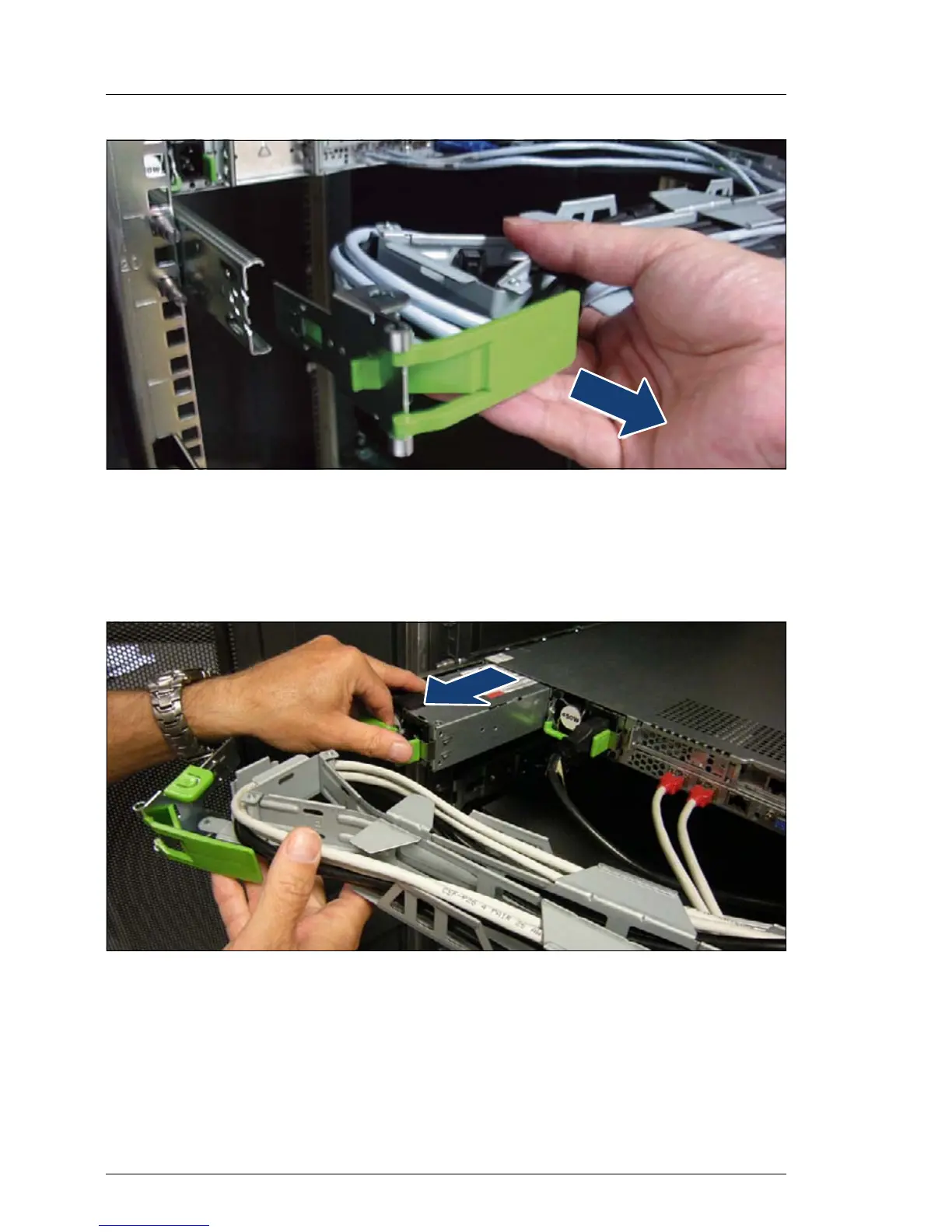

Figure 33: Removing the CMA stopper
Ê Remove the CMA stopper with the mounted crossbar.
Ê Hold the CMA stopper, the crossbar and the CMA including cables in the one
hand.
Figure 34: Removing the power supply unit
Ê Remove the power supply unit and install the dummy cover carefully.
I Note for PSU1: Remove the PSU1 carefully while lifting PSU1 and
bringing PSU1 to the right, in order to avoid interference
Ê Mount the complete assembly (CMA stopper, the crossbar and the CMA)
again into the rail.
