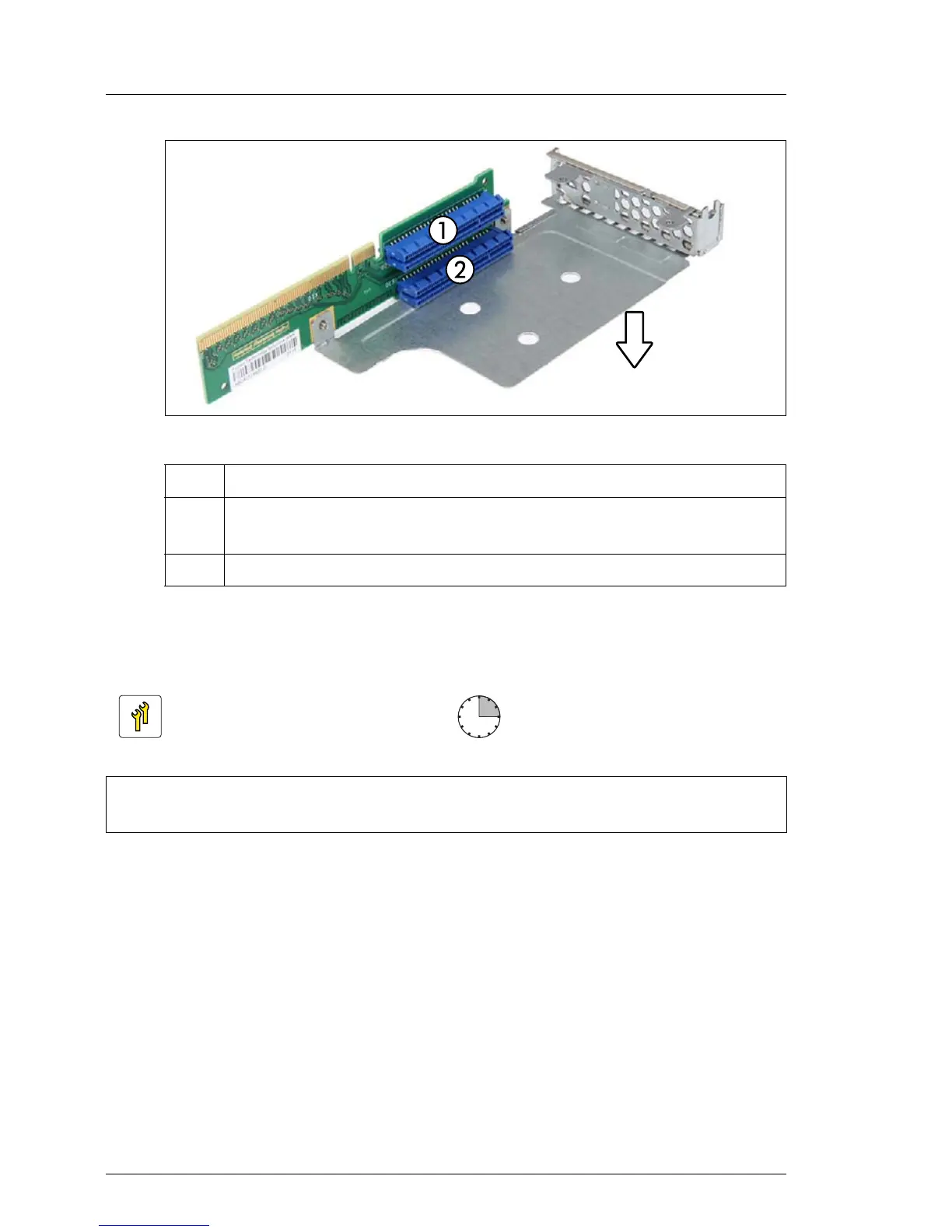

Figure 122: Slots of riser module 1
9.5.1 Installing an expansion card
9.5.1.1 Preliminary steps
Ê "Disabling SVOM boot watchdog functionality" on page 72
Ê "Suspending BitLocker functionality" on page 71
Ê "Shutting down the server" on page 48
Ê "Disconnecting the server from the mains" on page 49
Ê "Getting access to the component" on page 49
Ê Remove the corresponding riser module as described in section "Removing
a riser module" on page 62.
Pos. Component
1 Slot 1 is an internal slot only; dedicated slot for modular RAID
controller
2 Slot 2
Upgrade and Repair Unit
(URU)
Hardware: 10 minutes
Software: 5 minutes
Tools: slot 1: Phillips PH2 / (+) No. 2 screw driver
slot 2, slot 3, slot 4: tool-less
