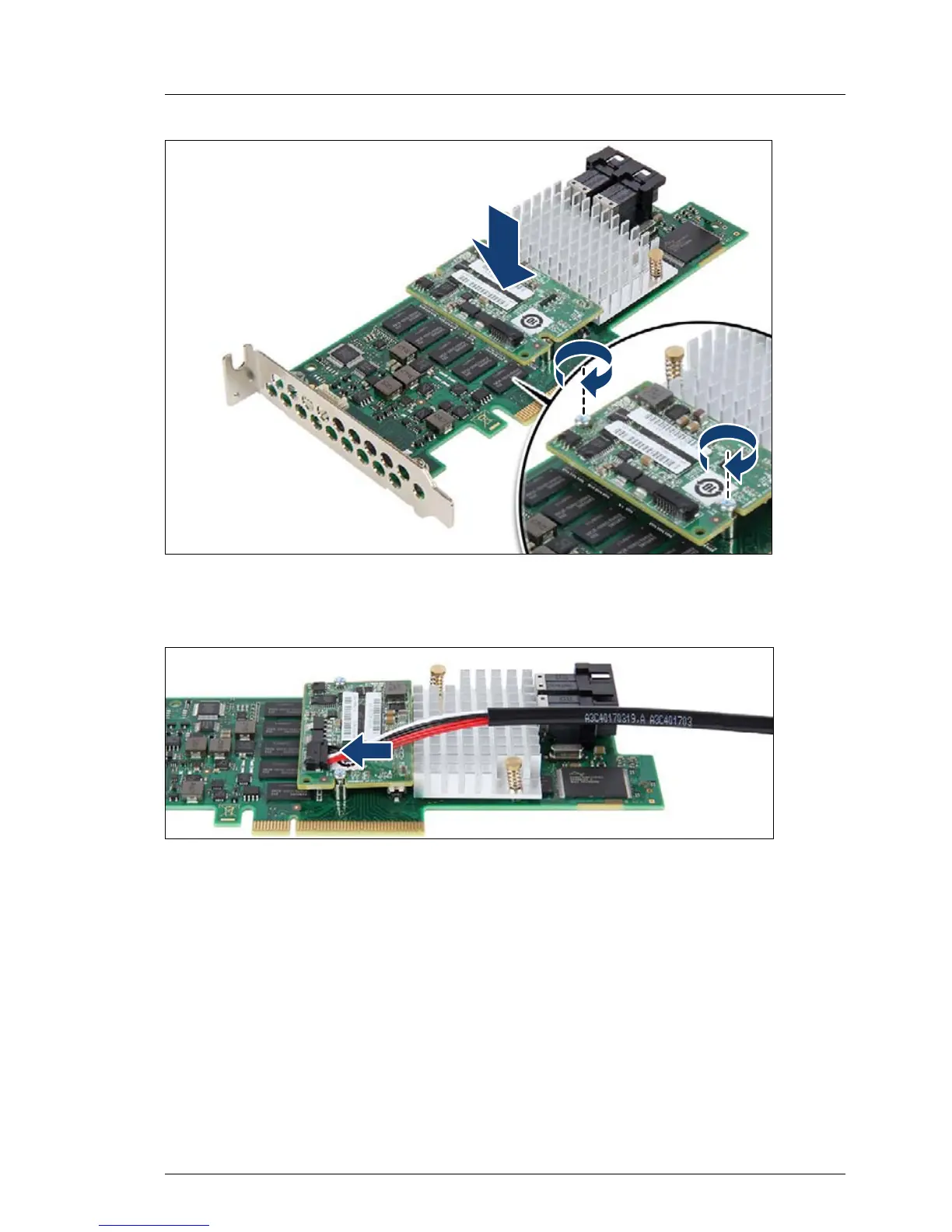

Figure 133: Installing the TFM (B)
Ê Secure the TFM on the RAID controller with the two screws from the TFM kit.
Figure 134: Connecting the FBU adapter cable
Ê Connect the FBU adapter cable to the TFM.
Ê Install the expansion card as described in section "Installing the expansion
card" on page 191.
9.5.5.4 Concluding steps
Ê "Reassembling" on page 54
Ê "Connecting the server to the mains" on page 60
Ê "Switching on the server" on page 61
