7.3 3.5-inch HDD configurations
7.3.1 Equipping the 3.5-inch HDD bays
– If only one HDD module is installed, the HDD module will be installed in the
left bay (seen from the front) and dummy modules must be installed in the
free bays.
– Installing different capacities, install the biggest capacity first.
– Installing different rotating speed, install the fastest rotating speed first.
Mounting order

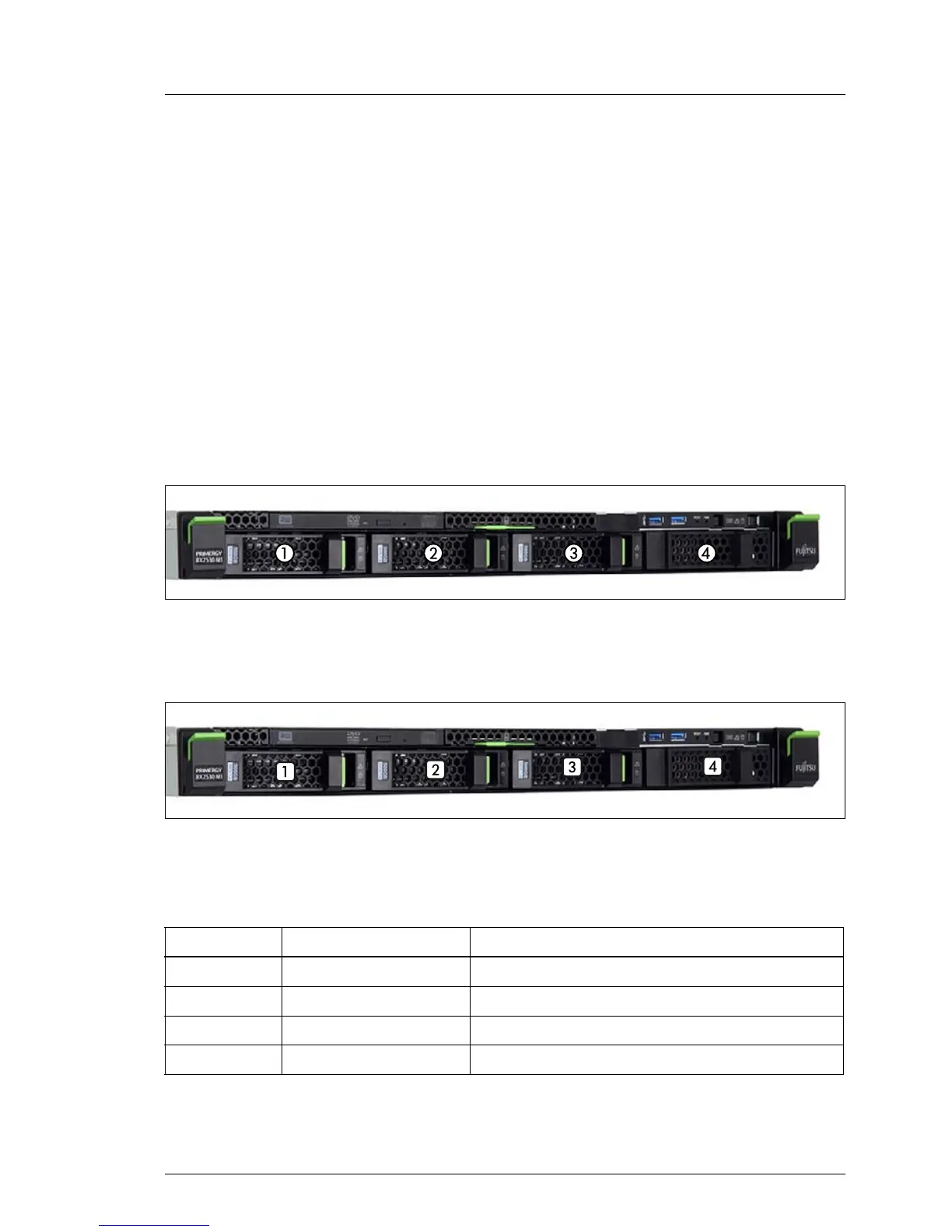

Figure 71: Mounting order with up to four 3.5-inch HDDs
HDD naming scheme
Figure 72: Naming scheme with up to four 3.5-inch HDDs
I The HDD numbering as listed in the ServerView RAID Manager differs
from the HDD mounting order:
Position Logical drive number ServerView RAID Manager display name
[1] 0 Vendor Product (0)
[2] 1 Vendor Product (1)
[3] 2 Vendor Product (2)
[4] 3 Vendor Product (3)
