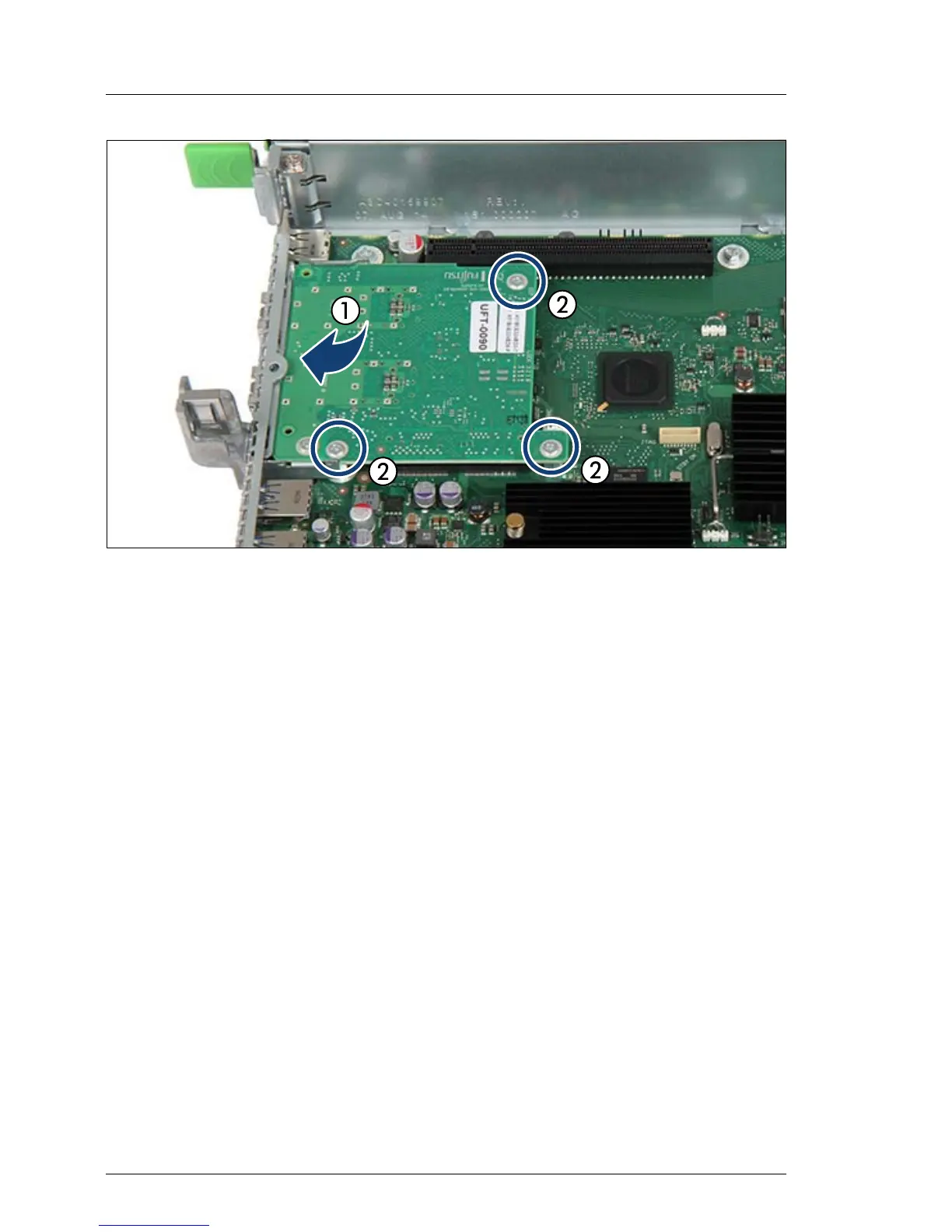

Figure 117: Installing the DynamicLoM module
Ê Install the DynamicLoM module with the bottom side above (1). Make sure
that the connectors are positioned correctly in the rear side.
Ê Fasten DynamicLoM module with three screws on the bolts (2).
9.4.1.4 Concluding steps
Ê Install riser module 2 and riser module 3 as described in section "Installing
a riser module" on page 63.
Ê "Reassembling" on page 54
Ê "Connecting the server to the mains" on page 60
Ê "Switching on the server" on page 61
Ê Inform the customer about changed WWN and MAC addresses. For further
information, refer to section "Looking up changed MAC / WWN addresses"
on page 96.
Ê "Updating the NIC configuration file in a Linux environment" on page 93
Ê "Configuring LAN teaming" on page 99
Ê "Enabling SVOM boot watchdog functionality" on page 89
Ê Start Emulex PXESelect Utility
