I The list may be changed due to new controllers.
For the latest information of the installing order, refer to your server’s
hardware configurator available online at the following address:
for the global market:
http://ts.fujitsu.com/products/standard_servers/index.htm
for the Japanese market:
http://jp.fujitsu.com/platform/server/primergy/system/
9.1.2 Equipping the slot for DynamicLoM modules

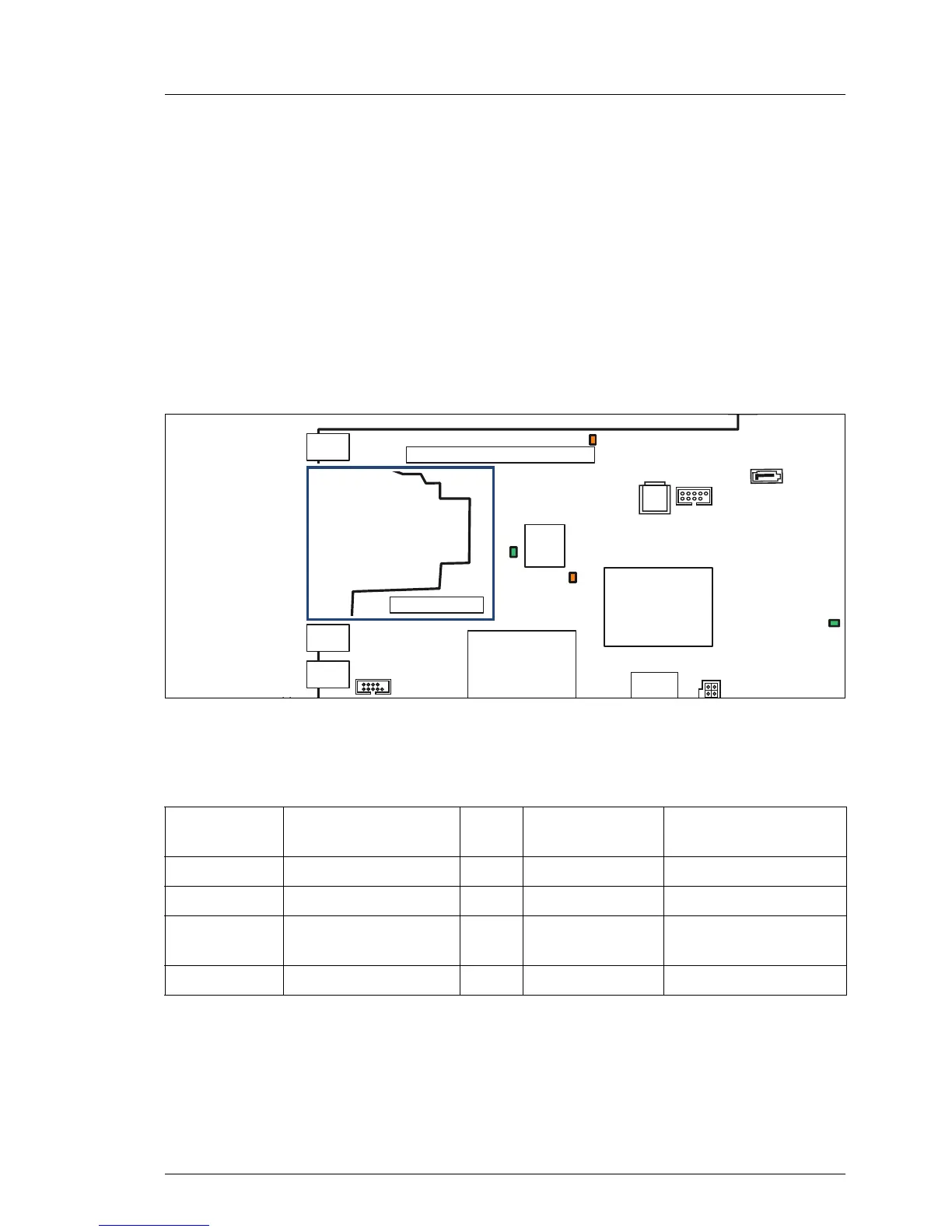

Figure 90: Slot for DynamicLoM modules
External connectors (external interfaces) can be added by different variants of
Dynamic LoM (LAN on Motherboard) modules.
DynamicLoM
module
Part number Bolt
length
Part number Screw M3 x 3.5 mm
for fixation
1Gb x2port S26361-D3245-A100 5 mm C26192-Y1-C65 C26192-Y10-C102
1Gb x4port S26361-D3255-A100 5 mm C26192-Y1-C65 C26192-Y10-C102
10Gb x2port
(SFP)
*)
S26361-D3265-A100 8 mm C26192-Y1-C66 C26192-Y10-C102
10Gb x2port S26361-D3275-A100 8 mm C26192-Y1-C66 C26192-Y10-C102
*)
The DynamicLoM module D3265 can be equipped with SFP modules.
For the installation of the SFP modules see section
"Handling SFP+
transceiver modules" on page 173.
