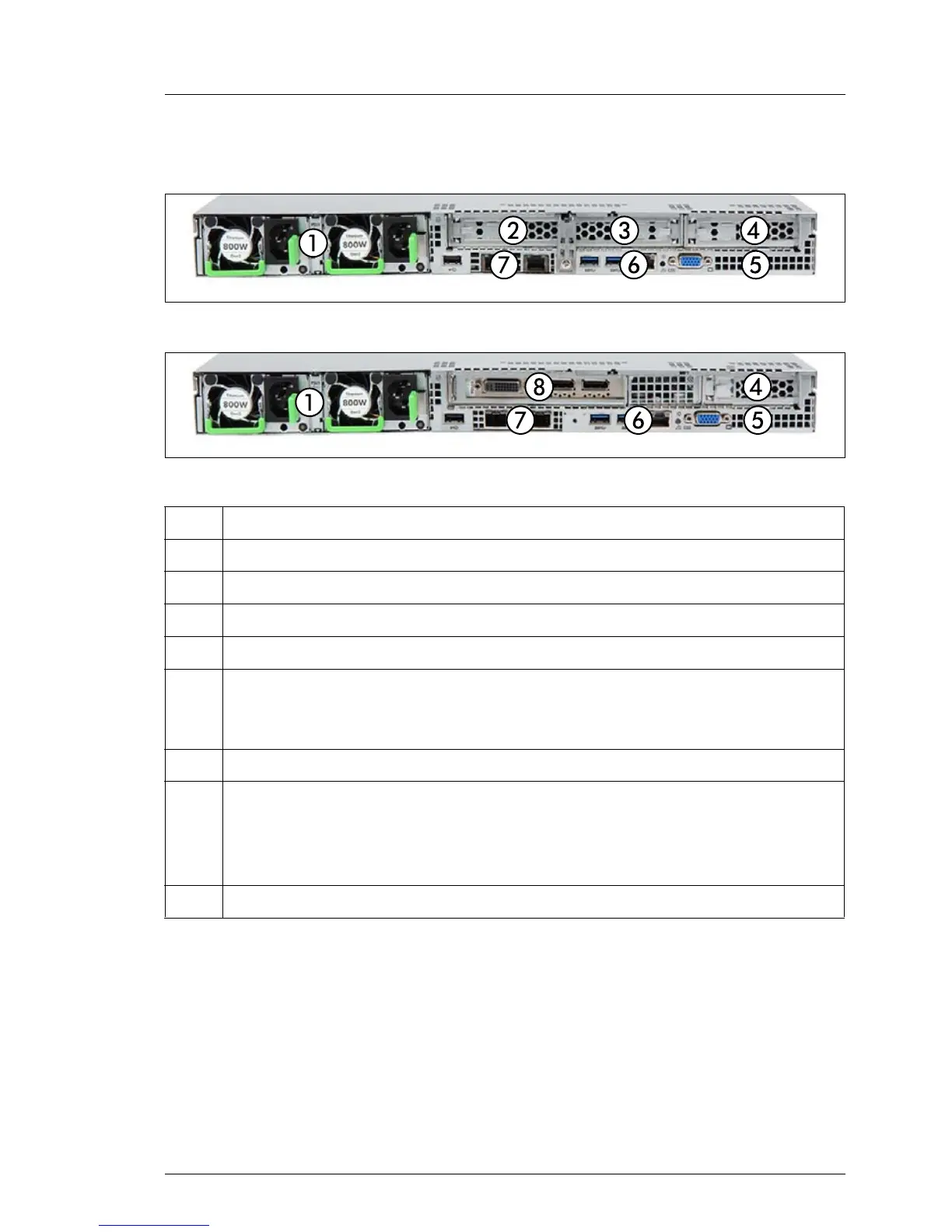

17.1.2 Server rear
Figure 260: Rear side
Figure 261: Rear side (full height riser module)
Pos. Component
1 Redundant power supply: up to 2 power supply units / dummy cover
2 PCI slot 4 / riser module 3
3 PCI slot 3 / riser module 2
4 PCI slot 2 / riser module 1 (see figure 122)
5 PCI slot 1 / riser module 1 (see figure 122)
(slot 1 is an internal slot only; dedicated slot for modular RAID
controller)
6 I/O panel
7 DynamicLoM module
(in the global market the
DynamicLoM module is an option; if no
DynamicLoM module has been ordered, you find a dummy cover
installed in this place)
8 PCI slot 4 / full height riser module
