9.6.4.2 Removing the FBU with the holder

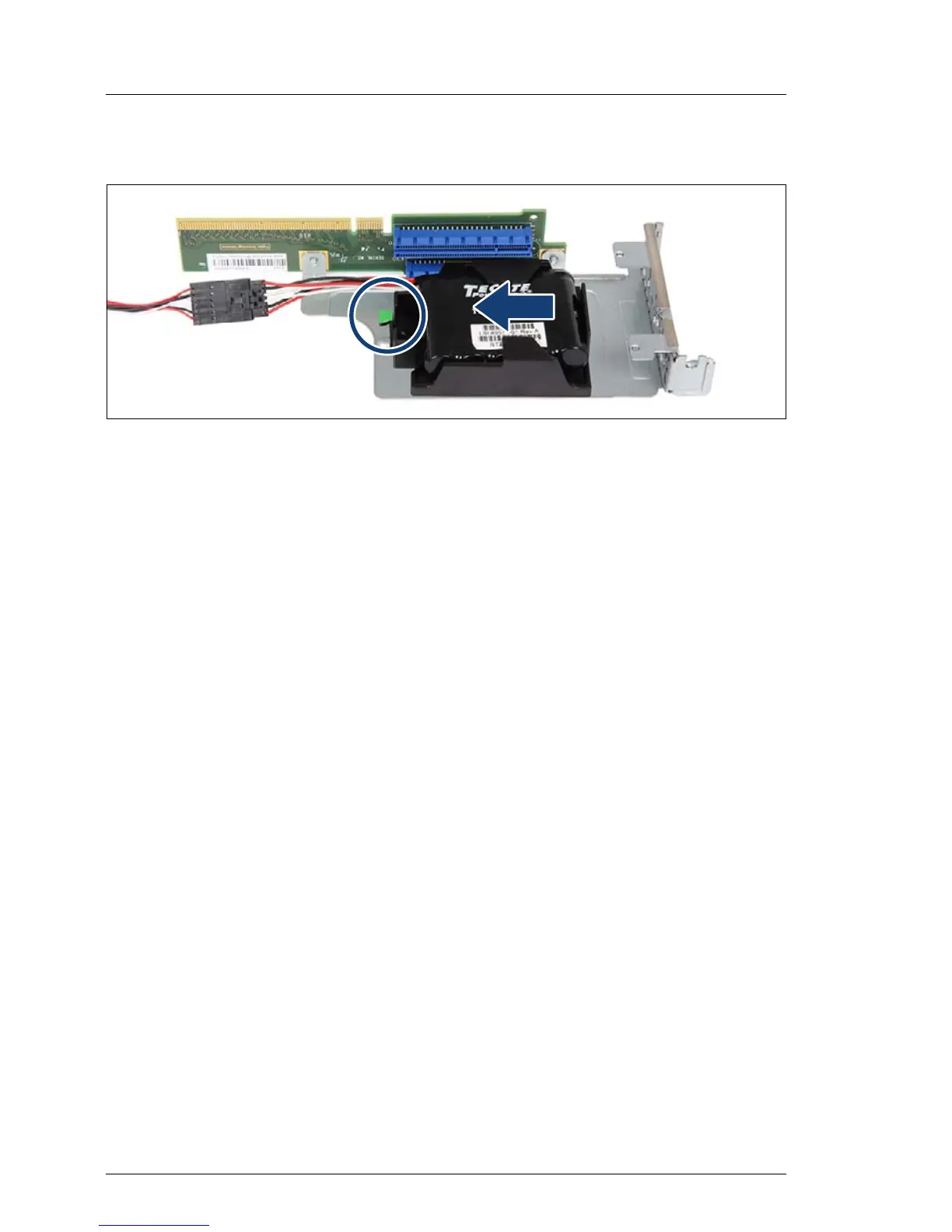

Figure 156: Removing the FBU with the holder
Ê Lift up the green locking handle on the holder (see circle) while sliding the
holder in direction of the arrow as far as it will go.
I After that, the shoulder screw caps on the riser module will rest in the
wide ends of the keyhole slots on the holder.
Ê Lift the holder out of the riser module.
9.6.4.3 Disconnecting the FBU cable from the FBU
Ê Disconnect the FBU cable from the FBU.
9.6.4.4 Removing the FBU from the holder
Ê Pull the FBU at a slight angle out of the holder.
9.6.4.5 Concluding steps
Ê Install the RAID controller in slot 1 as described in section "Installing an
expansion card" on page 190.
Ê Install the riser module 1 as described in section "Handling riser modules"
on page 62.
Ê "Reassembling" on page 54
Ê "Connecting the server to the mains" on page 60
Ê "Switching on the server" on page 61
