Fujitsu PRIMERGY RX2530 M1

248 Upgrade and Maintenance Manual RX2530 M1
Processors

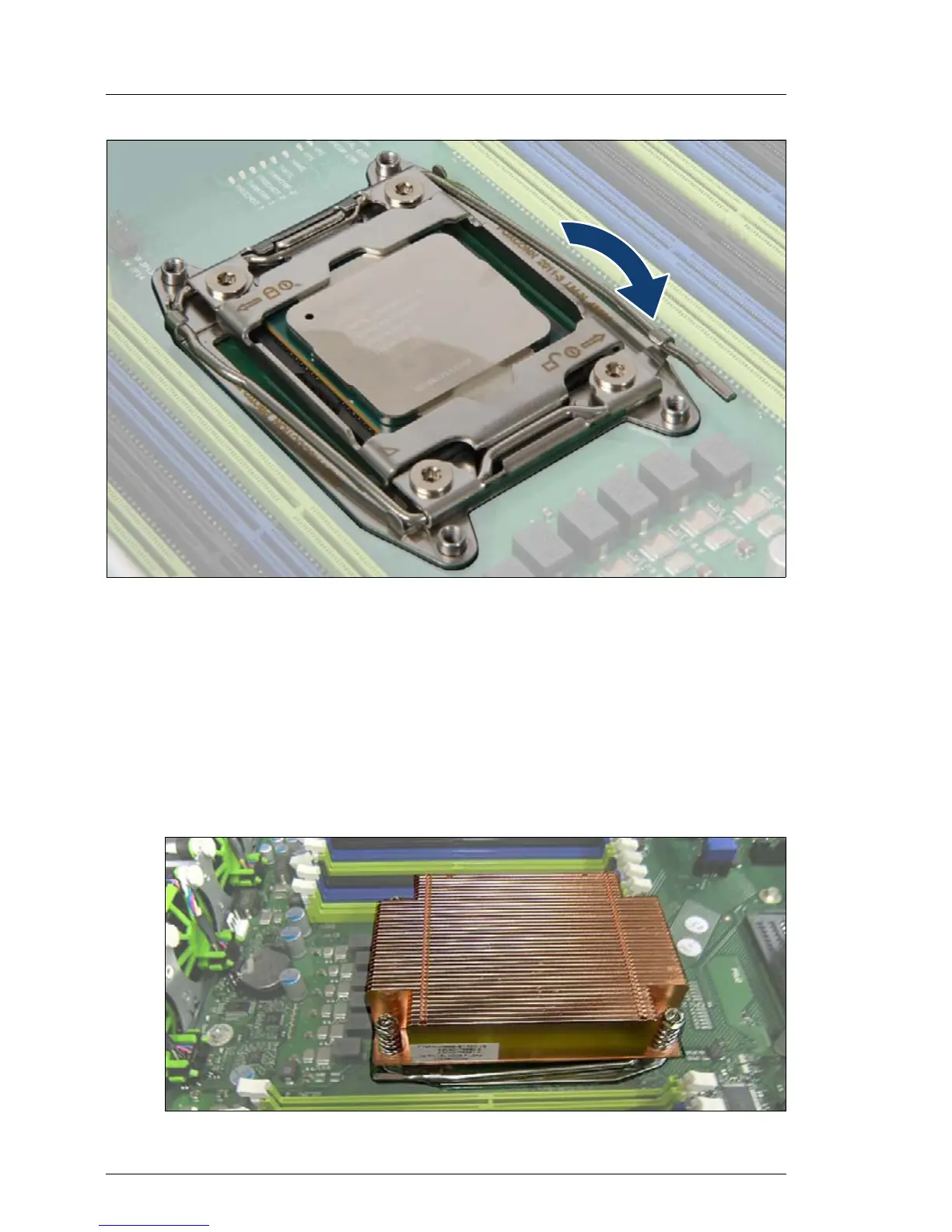

Figure 169: Closing socket release lever 1
Ê Close the socket release lever 1 marked Open 1st and latch it under the load
plate retention tab.
11.2.3 Installing the heat sink
I Processors with 135 W and more need dedicated heat sinks (part
number V26898-B1000-V2).
Figure 170: Heat sink (part number V26898-B1000-V2)
