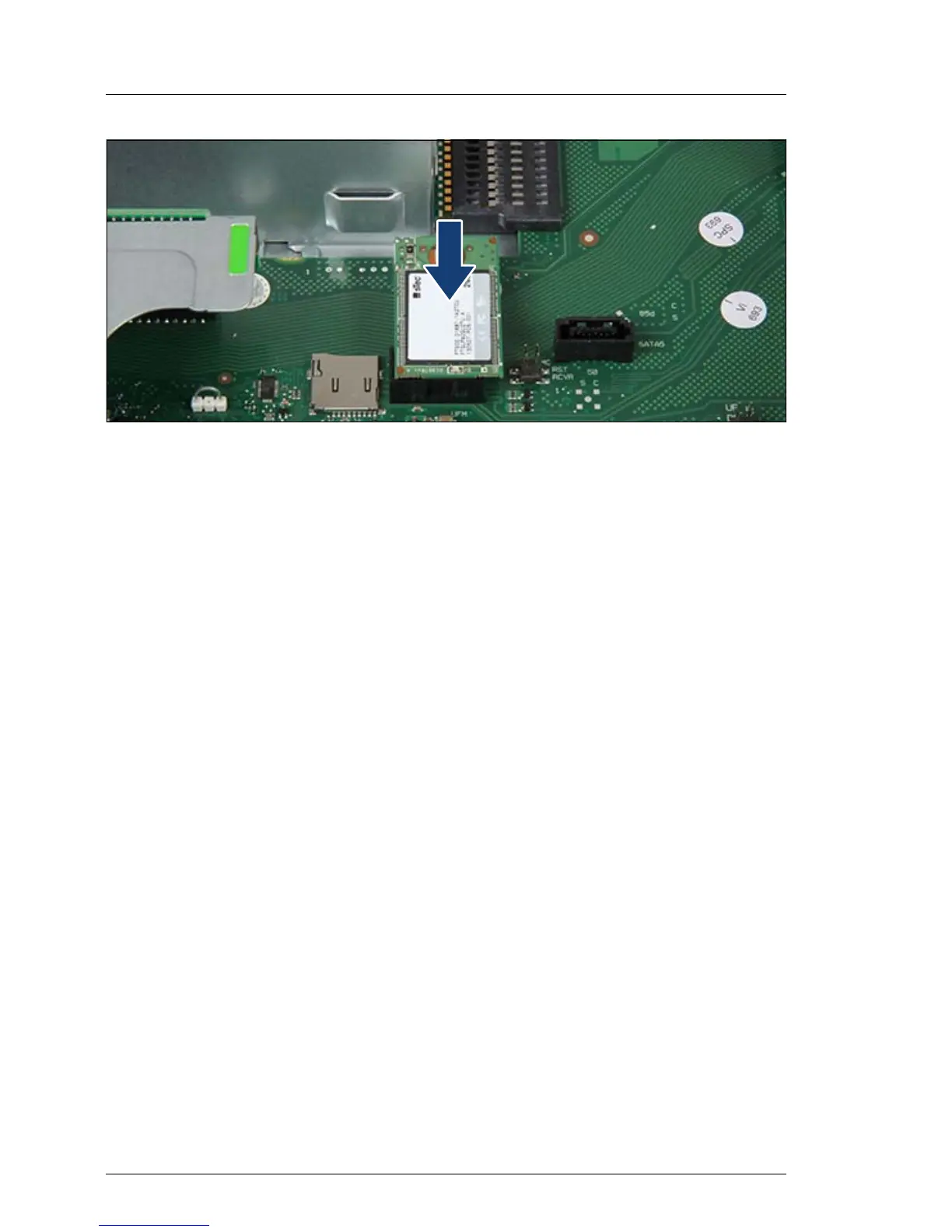

Figure 220: Installing the UFM
Ê Connect the UFM to the system board. The UFM spacer must click into the
hole on the system board.
15.3.1.3 Concluding steps
Ê If applicable, install the riser module 3 as described in section "Installing a
riser module" on page 63.
Ê "Reassembling" on page 54
Ê "Connecting the server to the mains" on page 60
Ê "Enabling SVOM boot watchdog functionality" on page 89
Ê "Switching on the server" on page 61
Ê "Resuming BitLocker functionality" on page 95
15.3.1.4 Software configuration
In order to setup the ESXi configuration, the VMware ESXi Recovery Tools CD
is required. An ISO image of the CD is available from the Fujitsu service
partners portal at the following https address:
https://globalpartners.ts.fujitsu.com/com/service/ps/Servers/PRIMERGY/
Pages/default.aspx.
Ê Sign in and choose your PRIMERGY server.
Ê Select the Software & Tools Documentation category.
Ê Download the desired ESXi Recovery CD ISO image, listed under Tools.
