9.4.2 Removing the DynamicLoM module
9.4.2.1 Preliminary steps
Ê "Disabling SVOM boot watchdog functionality" on page 72
Ê "Shutting down the server" on page 48
Ê "Disconnecting the server from the mains" on page 49
Ê "Getting access to the component" on page 49
Ê Remove riser module 2 and riser module 3 as described in section
"Removing a riser module" on page 62.
9.4.2.2 Removing the DynamicLoM module

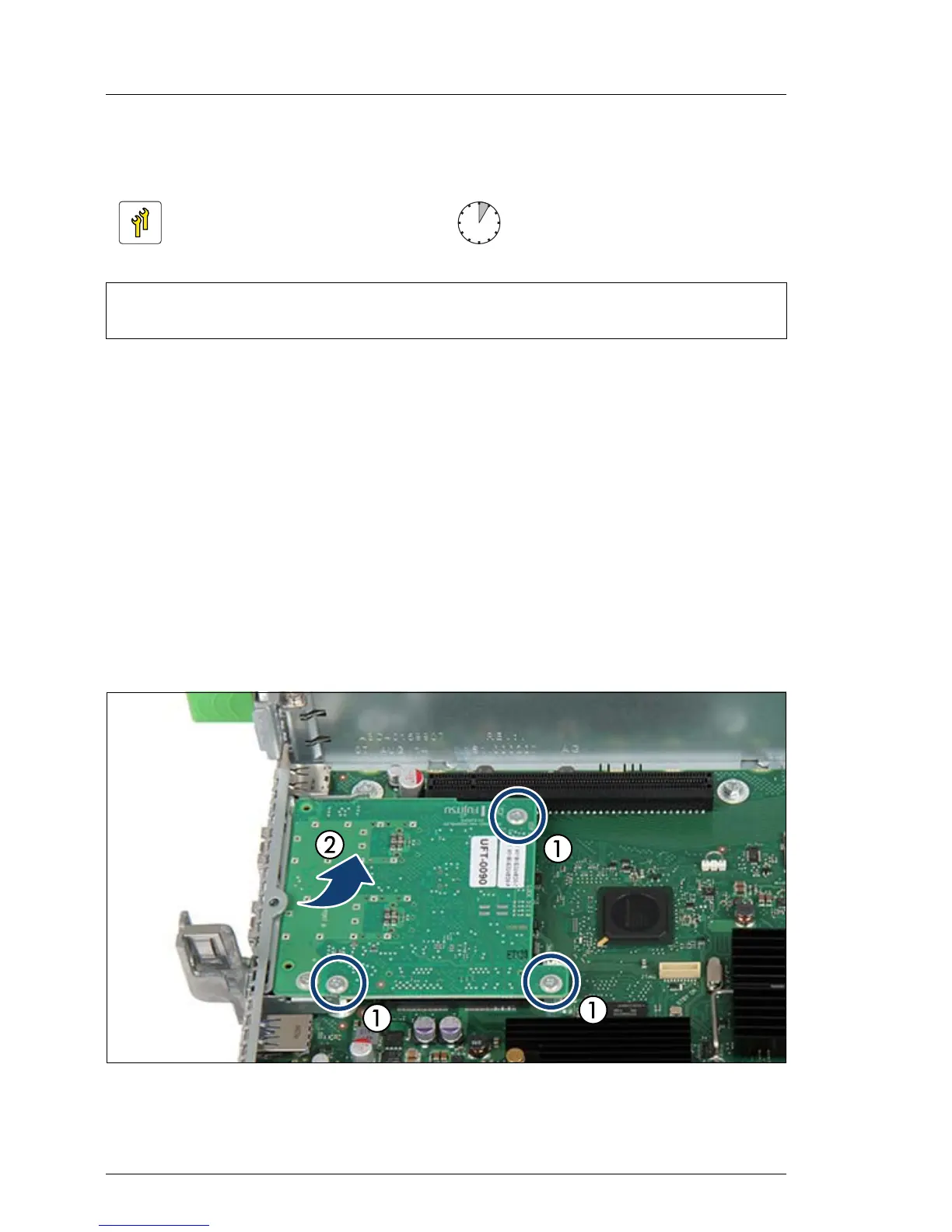

Figure 118: Removing the DynamicLoM module
Ê Remove the three screws (1).
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tool: – Phillips PH1 / (+) No. 1 screw driver
– hexagon screw driver 5mm
