RX2530 M1
Upgrade and Maintenance Manual 353
17 Appendix
17.1 Mechanical overview
17.1.1 Server front

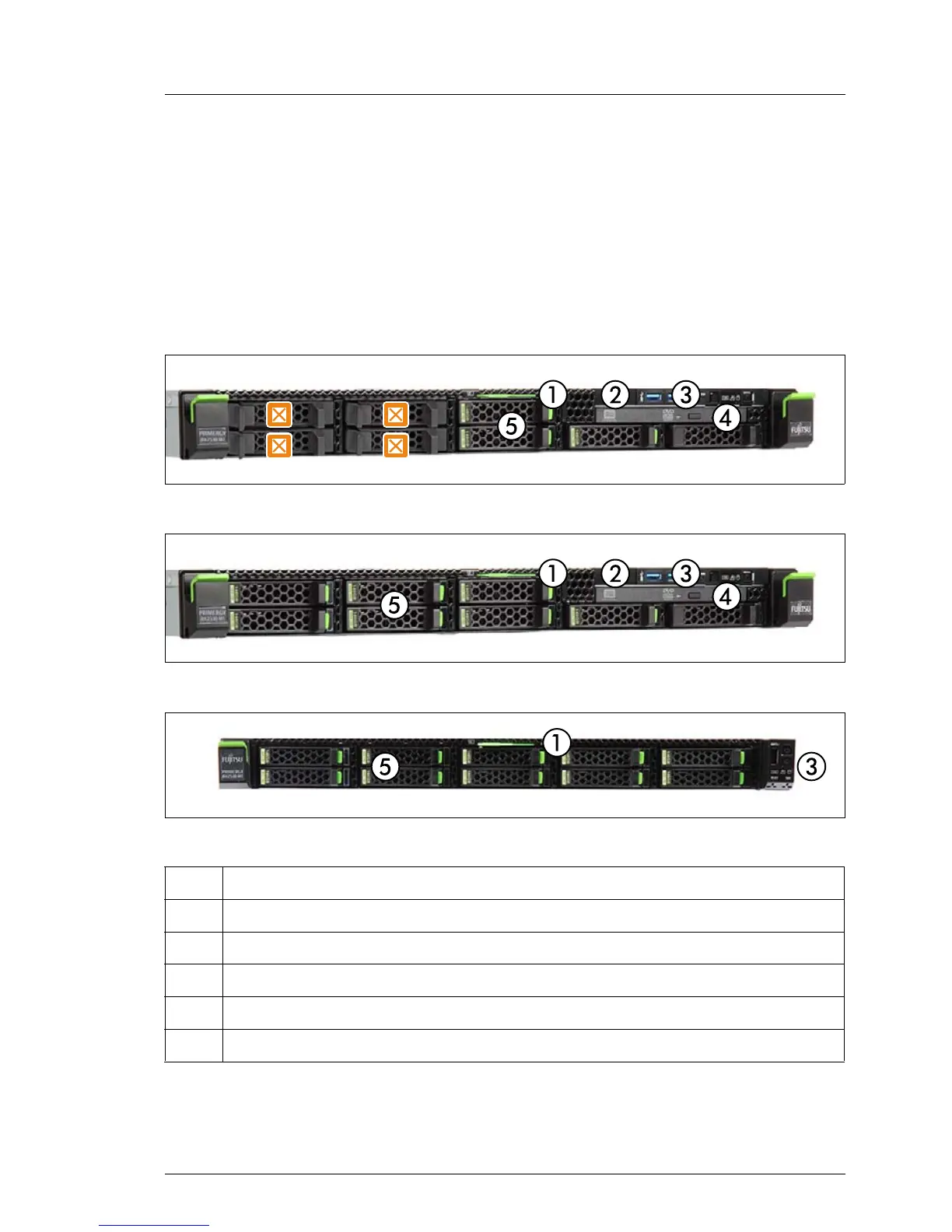

Figure 256: Front side 2.5-inch HDDs (up to 4 HDDs)
Figure 257: Front side 2.5-inch HDDs (up to 8 HDDs)
Figure 258: Front side 2.5-inch HDDs (up to 10 HDDs)
Pos. Component
1ID card
2 Front VGA (option) / dummy cover
3 Front panel and indicators
4 ODD (option) / dummy cover
5 4x /8x /10x 2.5-inch hard disk drives / dummy modules
