11.2.5 Installing four additional fan modules

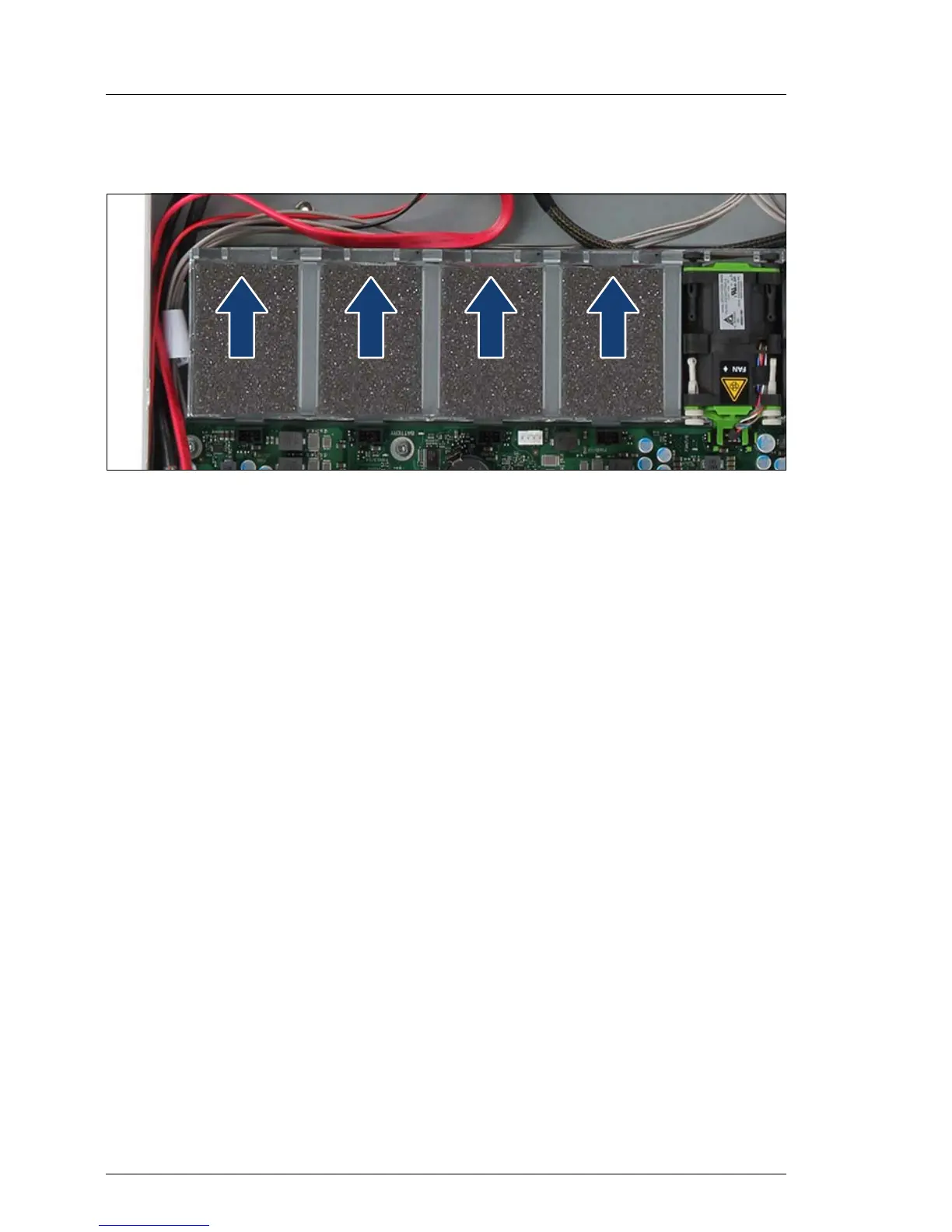

Figure 172: Removing sponges
Ê Remove the four sponges from the bays 5, 6, 7and 8.
Ê Install four fan modules in bays 5, 6, 7and 8 as described in section
"Installing the new fan module" on page 159 (overview of installed fans in all
bays see figure 82).
11.2.6 Concluding steps
Ê "Installing the CPU air guides" on page 69
Ê "Reassembling" on page 54
Ê "Connecting the server to the mains" on page 60
I If Global Error LED is flashing with error message CPU has been
changed on display after the system is powered on, please follow the
procedure below.
Ê Restart your server.
Ê As soon as the startup screen appears, press the [F2] function key to
enter the BIOS.
If a password is assigned, enter the password and press [Enter].
Ê Select the Save & Exit menu.
Ê Select Save Changes and Exit or Save Changes and Reset.
Ê Verify that the LED stops flashing.
