9.6.2 Installing an FBU in a 3.5-inch HDD chassis
I The riser holder of riser module 1 has to be exchanged with a riser holder
with shoulder screw caps (included in FBU kit).
9.6.2.1 Preliminary steps
Ê "Disabling SVOM boot watchdog functionality" on page 72
Ê "Shutting down the server" on page 48
Ê "Disconnecting the server from the mains" on page 49
Ê "Getting access to the component" on page 49
Ê Remove the riser module 1 as described in section "Handling riser modules"
on page 62.
9.6.2.2 Preparing the riser holder

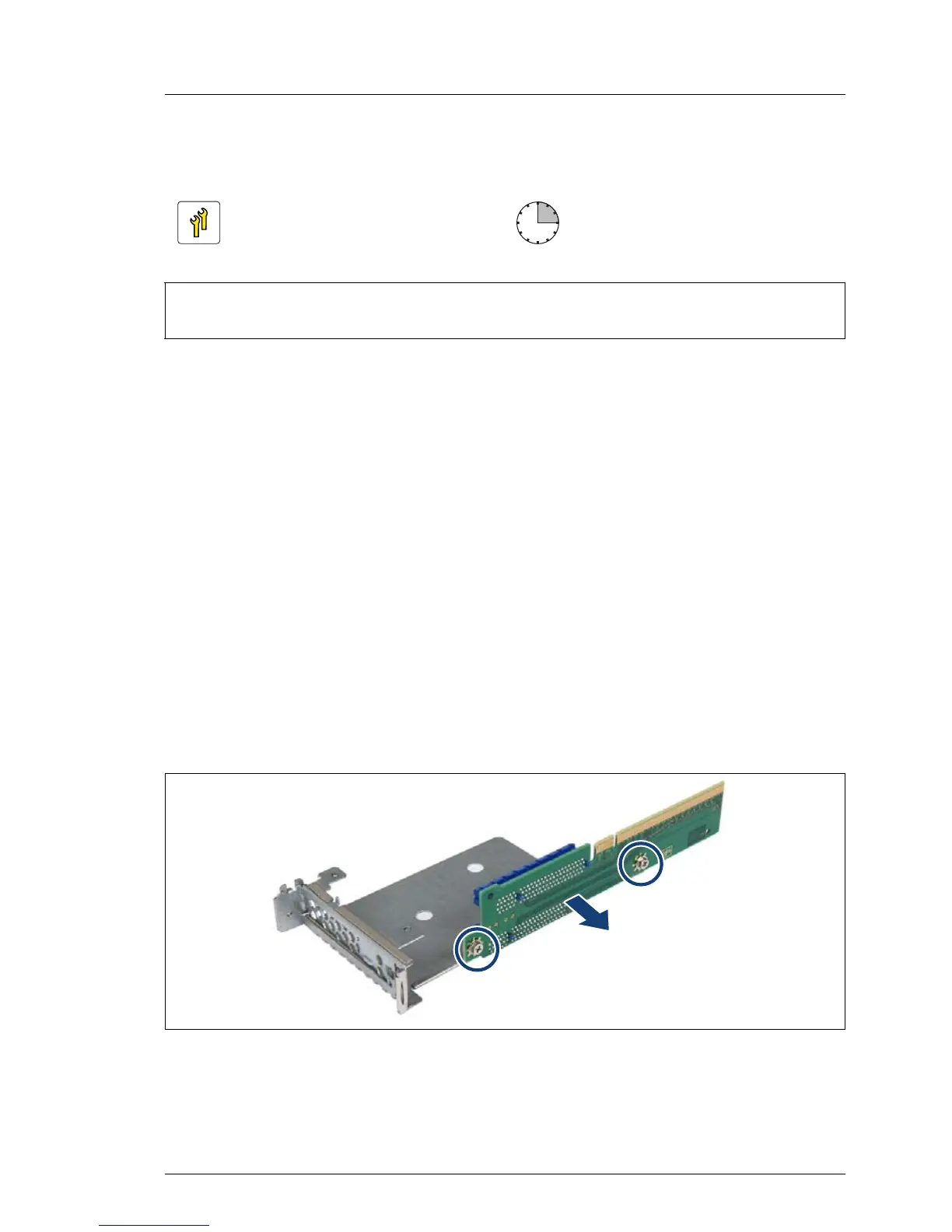

Figure 147: Removing the riser card - example riser module 1
Ê Remove the two screws (see circles).
Ê Remove the riser card.
Upgrade and Repair Unit
(URU)
Hardware: 15 minutes
Tools: – Phillips PH1 / (+) No. 1 screw driver (for installing TFM)
– Phillips PH2 / (+) No. 2 screw driver (for transferring riser card)
