Fujitsu PRIMERGY RX2530 M1

370 Upgrade and Maintenance Manual RX2530 M1
Appendix
17.3 Onboard settings

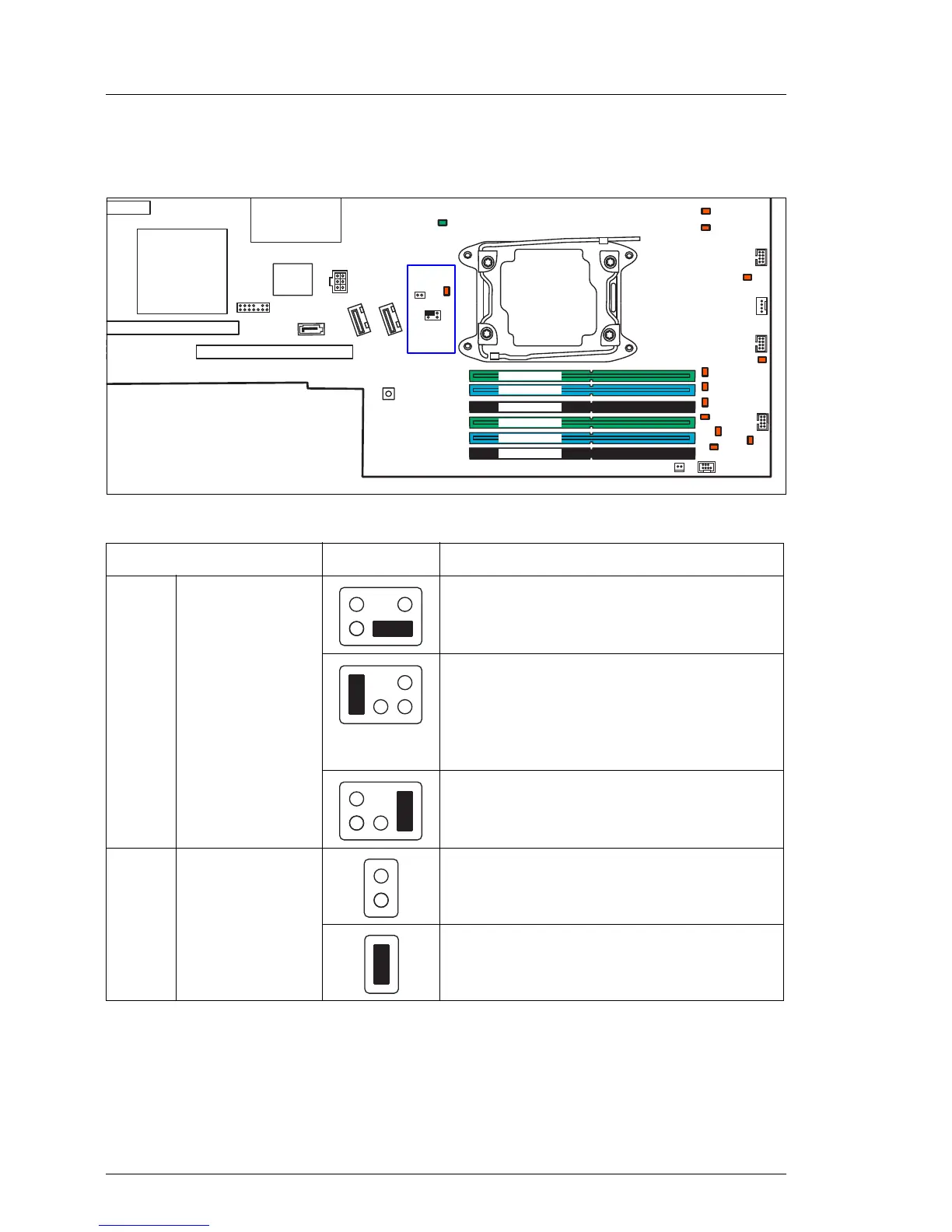

Figure 273: Jumper
Jumper Status Description
JP1
JP2
PWD CLR /
BIOS-RCVR
Default: Password delete and
Recovery BIOS options disabled
Password skip enabled
This jumper setting will permanently
delete the current BIOS password and
apply default BIOS settings.
Recovery BIOS enabled
JP3
BIOS Flash
Write Protect
Default
Flash write protect enable
INDICATE
CSS
TPM
Slot riser card / slot 1 and 2
PCH
CPU 1 DIMM 3D
JP3
SATA
1-4
FA SY
FAN 5/6 SYS
FAN 3/4 SYS
FAN 1/2 SYS
iser card / slot 3
Slot 3
CPU 1
Slot 2
Slot 1
CPU 1 DIMM 2D
CPU 1 DIMM 1D
CPU 1 DIMM 3C
CPU 1 DIMM 2C
CPU 1 DIMM 1C
PWR4
SMB4
FAN17
PWR3
SATA
7-10
SATA 6
DOM
JP2 JP1
1
1
2
M modules
