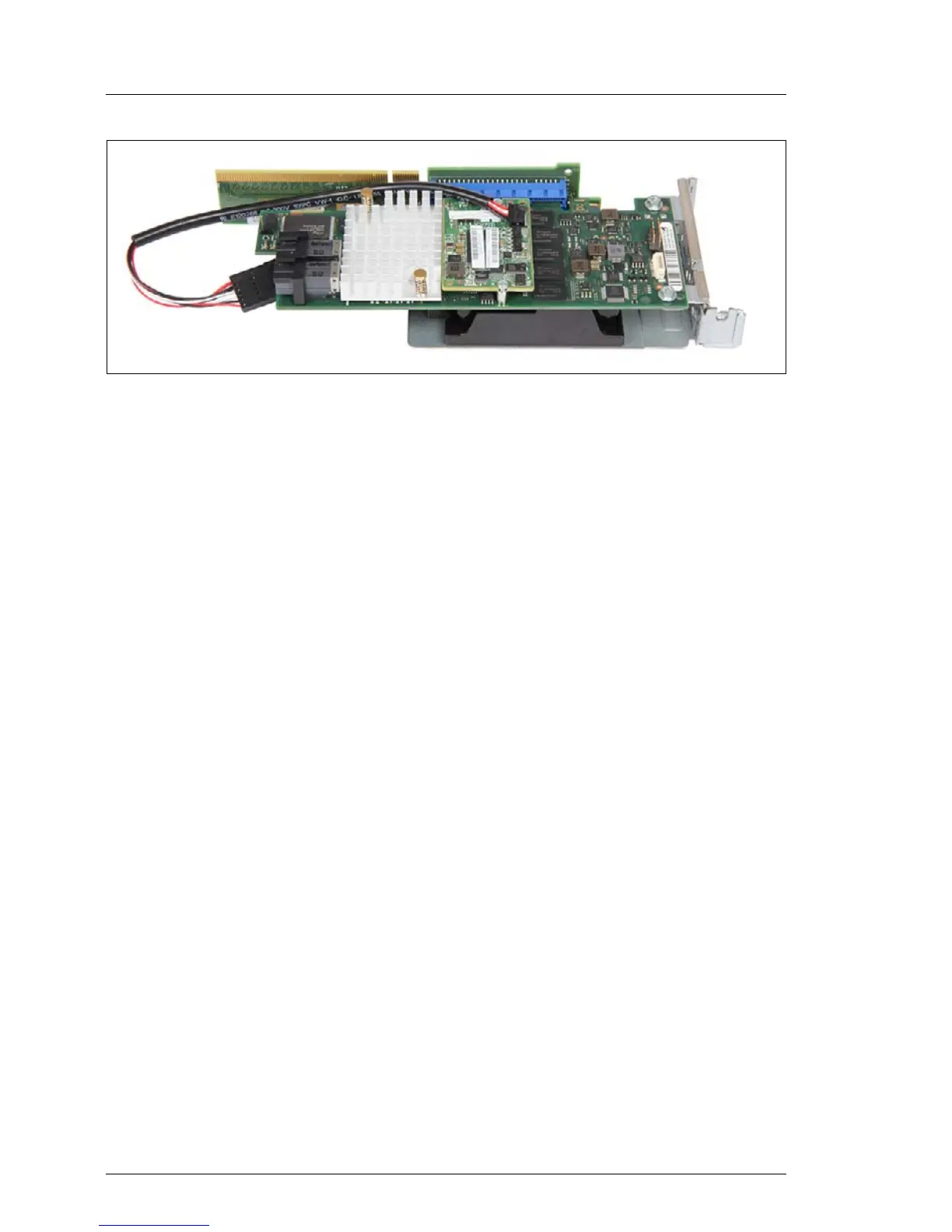

Figure 152: Routing the FBU cable
Ê Install the RAID controller with the TFM in slot 1 as described in section
"Installing an expansion card" on page 190.
Ê Route the FBU cable as shown in the figure.
9.6.2.5 Concluding steps
Ê Install the riser module 1 as described in section "Handling riser modules"
on page 62.
Ê "Reassembling" on page 54
Ê "Connecting the server to the mains" on page 60
Ê "Updating RAID controller firmware" on page 82
Ê "Enabling SVOM boot watchdog functionality" on page 89
Ê "Switching on the server" on page 61
I The recalibration of the FBU starts automatically, and finishes within a
few minutes.
