9.5.6.2 Installing the upgrade kit

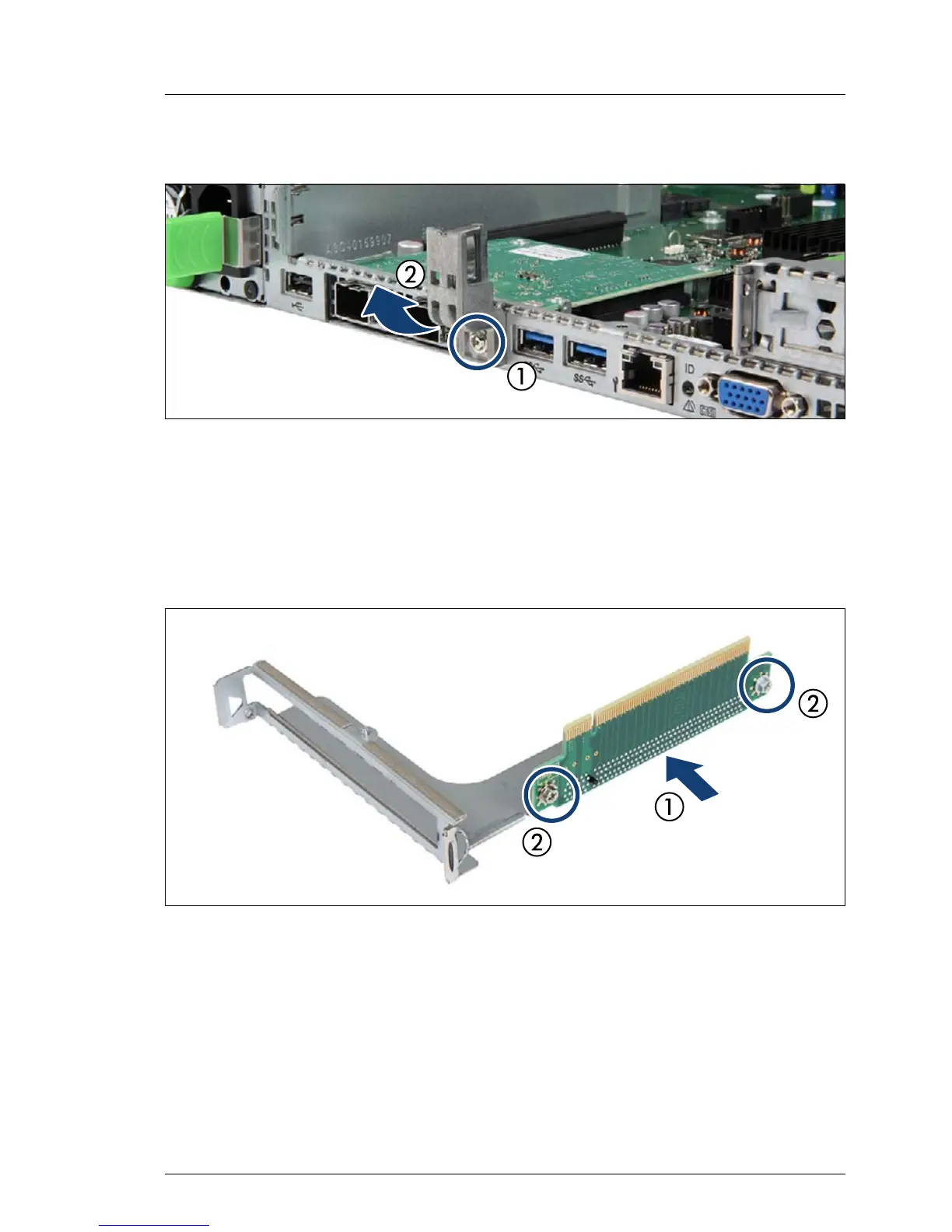

Figure 136: Removing the riser module support
Ê Remove the screw (1).
Ê Remove the riser module support (2).
Ê Remove the riser card from riser module 3 as described in section
"Removing the defective riser card" on page 198.
Figure 137: Installing the riser card - example full height riser module
Ê Insert the riser card (1).
Ê Fasten the riser card with two screws (2).
Ê If applicable, install a full height slot bracket to the expansion card as
described in section "Installing a slot bracket" on page 170.
